250L Photostability Chamber Temperature Stability Chamber
We are a professional stability test chamber manufacturer, the Photostability Chamber is a temperature controlled chamber. It is a advanced stability chambers for precise temperature control. ICH Approved. The 500L photostability test chambers is characterized by ideal light, UV, temperature, and humidity distribution and can therefore guarantee a completely reproducible climate, UV and light conditions.
Key Features:
• Temperature Control: Temperature Fluctuation ≤ ±1.0℃,Temperature Deviation ≤ ±2.0℃(Same layer)
• Illumination Control: The total illumination is not less than 1.2×106 Lux·hr,Near ultraviolet energy is not less than 200w·hr/m2
• Light Source Design: Top light source design, the sample of different position of shelf has good uniformity of receiving light source irradiation
• Insulation material: Integral polyurethane foam technology, with good heat preservation and moisture retention performance
• Chamber Material: The liner is made of mirror stainless steel 304, no pollution source, easy to clean,the out shell is plastic sprayed steel plate
• Refrigerating System: The imported fully enclosed industrial compressor, long-life, low noise.
• Control System: The imported digital display illuminance controller,High control accuracy.
• Safety device: compressor overheat and overpressure overload protection, Fan overheat protection.
• Dual Protection: Equipped with independent overtemperature protection system, can automatically cut off the power supply
• Data Record: Equipped with data collection system conform to GMP requirements,Needle micro printer and USB output port as standard
• Meet a criterion: Meet ICHQ1B、Chinese Pharmacopoeia 2020 edition
• Installed Power: AC220V±10% 50HZ
• Environment temperature: +5~35℃
• SMS alarm: Optional.
Stability chamber specification:
MODEL |
TEMP RANGE |
CAPACITY(L) |
INTERNAL DIMEN(mm) W×D×H |
EXTERNAL DIMEN(mm) W×D×H |
POWER(KW) |
TRAY |
SystemIllumination range |
Remarks |
XCH-150TPS |
15~50℃ |
150 |
650×490×500 |
800×790×1250 |
1.0 |
1 |
Visible light: 100 ~ 8000Lux Near UV: 0.84 ~ 5w/m2 |
1*independent light source system
1*printing storage system
|

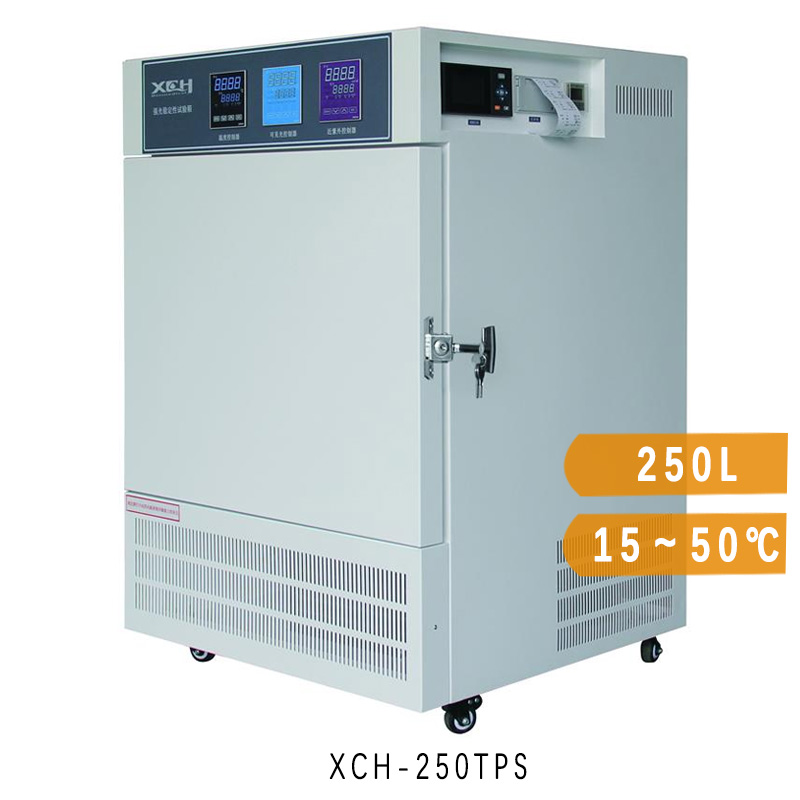

XCH-250TPS |
15~50℃ |
250 |
600×500×830 |
760×870×1650 |
1.5 |
2 |
2*independent light source system
2*printing storage system
|
|
XCH-500TPS |
15~50℃ |
500 |
680×680×1070 |
840×1050×1850 |
2.2 |
3 |
3*independent light source system
Print and store 3 layers of data
|
|
XCH-250LTPS |
2~30℃ |
250 |
600×500×830 |
760×870×1650 |
1.5 |
1 |
Visible light: |
1*independent light source system
1*printing storage system
|
XCH-500LTPS |
2~30℃ |
500 |
680×680×1070 |
840×1050×1850 |
2.2 |
2 |
2*independent light source system
Print and store 2 layers of data
|
Advantages:
No maintenance.No pollution source
High sensitivity, low annual drift
High precision
Safety,with alarm system
