Stability Chamber Manufacturer
Vacuum Oven
Home Vacuum Oven

Laboratory Vacuum Drying Oven with Pump 420L

Laboratory Vacuum Drying Oven with Pump 420L

XCH 6500ZK high precision vacuum drying oven for laboratory, used for temperature or gas sensitive vacuum drying and storage. The vacuum drying oven is suitable for hot places in a vacuum environment such as defoaming, dehydration, hardening and drying after cleaning treatment in the production process of electronic products.



Model: 6050ZK - 6500ZK

Temp.Range: 10℃~200℃

Temperature Fluctuation: ±1.0℃

Temperature Accuracy: ±0.1℃



Vacuum degree: vacuum indicator display

Environment Temperature: +5 ~ 35℃

Installed Power: AC220V±10% 50HZ

  • Item No. :

    XCH 6500ZK
  • Origin :

    China

FEATURES

  • STAINLESS STEEL STAINLESS STEEL

    The liner is made of mirror stainless steel 304

  • REAL-TIME ALARM REAL-TIME ALARM

    Upper and lower limit deviation alarm of temperature and humidity

  • 1 YEAR WARRANTY 1 YEAR WARRANTY

    All machines come with a 1-year limited warranty and engineer remote support.

  • HIGH SENSITIVITY HIGH SENSITIVITY

    Capacitive humidity sensor with high sensitivity.

TEMPERATURE & HUMIDITY Specs:




  • Temp.Range: 10℃~200℃
  • Temperature Fluctuation: ±1.0℃
  • Temperature Accuracy: ±0.1℃
  • Environment temperature: +5~35℃



It is suitable for heat treatment of electronic products under vacuum condition, such as defoaming, dehydration, hardening and drying after clean treatment,it is especially suitable for fast and efficient drying of drying heat sensitive articles.Widely used in electronic products and biochemistry, chemical pharmaceutical, medical, agriculture, environmental protection and other research and application fields.

CONTROL TECHNOLOGY

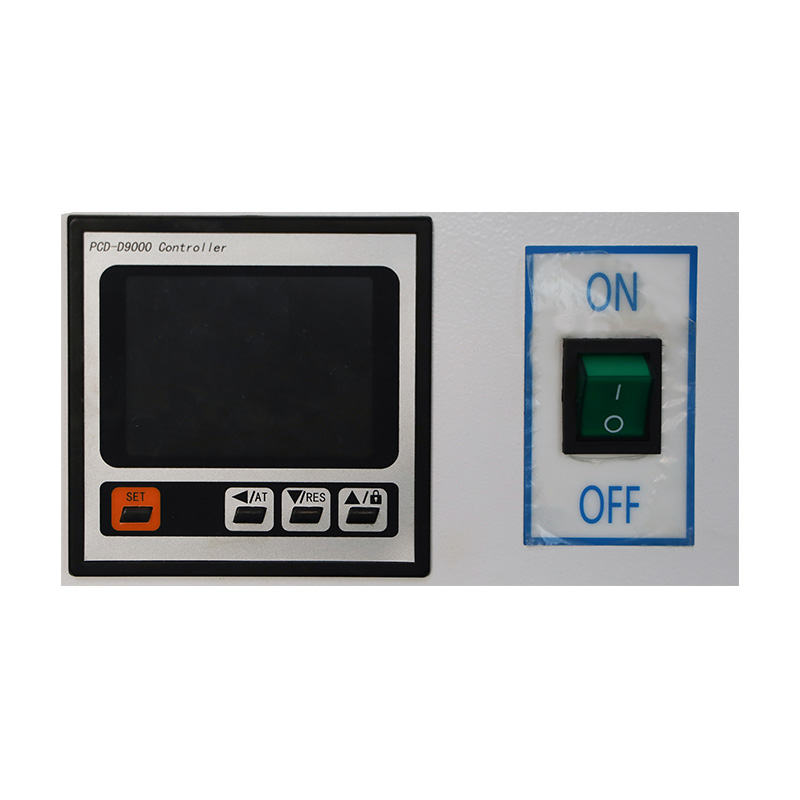

  • Microcomputer temperature controller,Temperature control is accurate and reliable.



  • Adopt the aluminum shelf made by special stamping process,It has the advantages of no oxidation at high temperature, fast heat conduction and low heat loss.



SAFETY, STANDARDS, & DATA


  • High Performance fully enclosed compressor,long-term use ,stable performance

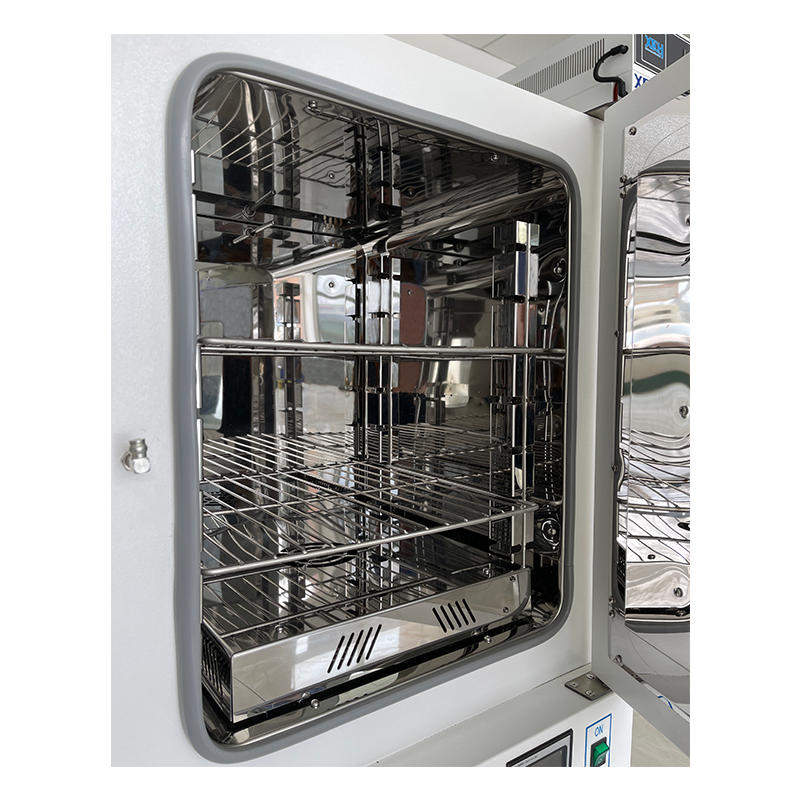

  • Double glass door observation window is adopted to facilitate observation of samples inside the box.

MATERIAL:


  • Double glass observation window facilitate observation of samples inside the box.

MODEL & PARAMETERS:


MODEL TEMP RANGE CAPACITY INTER DIMEN
W×D×H
EXTER DIMEN
W×D×H
POWER TRAYS Remark
XCH-6050ZK  RT+10℃ ~ 200 50L 415×370×345(mm) 710×560×550(mm) 1.1KW 2 Without vacuum pump
XCH-6090ZK RT+10℃ ~ 200℃ 90L 450×450×450(mm) 610×680×1460(mm) 1.7KW 2 vacuum pump Two layers, independent TEMP control
XCH-6210ZK RT+10℃ ~ 200℃ 210L 560×600×640(mm) 720×820×1750(mm) 2.0KW 3 vacuum pump Three layers, independent TEMP control
XCH-6500ZK RT+10℃ ~ 200℃ 420L 630×810×840(mm) 790×1030×1860(mm) 3.6KW 4 vacuum pump Four layers, independent TEMP control



* Please consult the sales for specific technical parameters, XCH Biomedical reserves the right of explanation. Email: Christine@thchamber.com

leave a message
If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.
Get In Touch With



The XCH Biomedical brand test chambers can meet the temperature, humidity and vacuum test requirements of the biomedical field. Using advanced technology and excellent accessories, our products are widely recognized by customers for their stable and qualified performance.



Contact Today!
