Stability Chamber Manufacturer
High Temperature Chamber
Home High Temperature Chamber

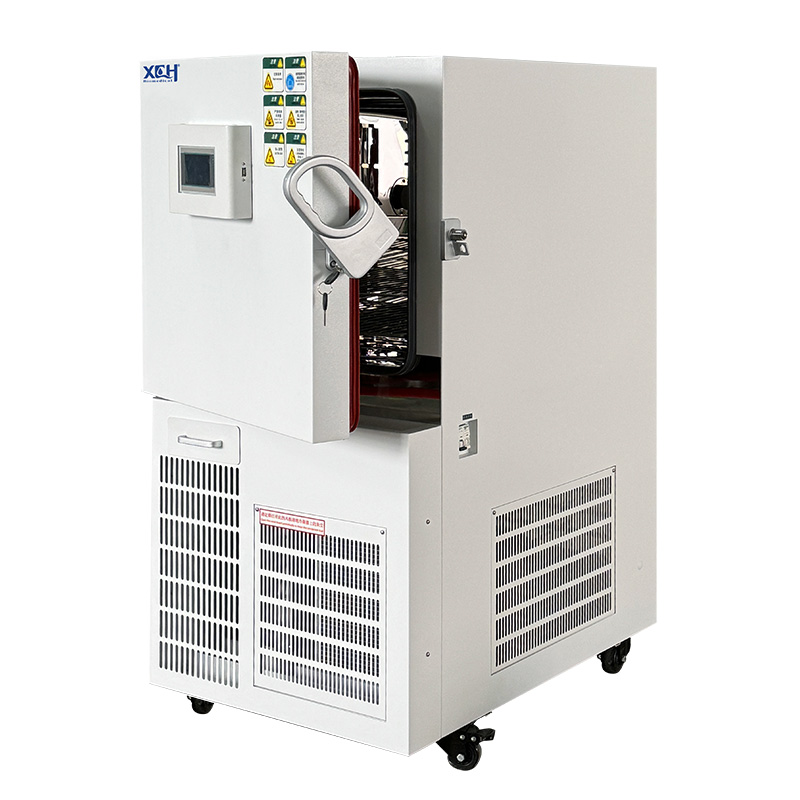

High And Low Temperature Humidity Alternating Test Chamber

High And Low Temperature Humidity Alternating Test Chamber

Model

    • XCH-100JSB
    • XCH-250JSB
    • XCH-500JSB
    • XCH-1000JSB

XCH JSB Series is a temperature & humidity chamber with high and low temperature Chamber. Through the test and detection, so as to judge whether the performance of the product meets the design requirements for testing.



Model: XCH-JSB

Temp.Range:-40 - 150℃

Humi.Range: 20 - 98% RH

Environment temperature: +5 ~ 35℃

Temperature Fluctuation: <±0.5℃

Temperature deviation: <±2.0℃

Humidity deviation: < ±5%RH(Humidity deviation ≤ 75%RH)

Power: AC 220V±10% 50HZ

  • Item No. :

    XCH 100JSB~1000JSB
  • Origin :

    China

FEATURES

  • STAINLESS STEEL STAINLESS STEEL

    The liner is made of mirror stainless steel 304

  • REAL-TIME ALARM REAL-TIME ALARM

    Upper and lower limit deviation alarm of temperature and humidity

  • 1 YEAR WARRANTY 1 YEAR WARRANTY

    All machines come with a 1-year limited warranty and engineer remote support.

  • HIGH SENSITIVITY HIGH SENSITIVITY

    Capacitive humidity sensor with high sensitivity.

TEMPERATURE & HUMIDITY Specs:

  • Temperature control accuracy: Temperature Fluctuation < ±0.5℃ ,Temperature Deviation < ±2.0℃
  • Humidity control accuracy: Humidity deviation < ±3%RH(Humidity deviation > 75%RH)
  • Temperature control rate: Heating Rising Rate: 1 ~ 3℃ /Min;
  • Cooling Fall Rate: 0.7 ~ 1℃ /Min
  • Installed Power: AC220V±10% 50HZ
  • Environment temperature: +5~35℃



APPLICATIONS:

Suitable for electrical and electronic products, aerospace products, auto parts, various electronic components in high temperature, low temperature, humid and hot environment storage, transportation and use of the adaptability test, through the test and detection, so as to judge whether the performance of the product meets the design





CONTROL TECHNOLOGY


  • Control system: Programmable chromatic touch screen controller,With multi - segment program and constant value function



  • Temperature control accuracy: Temperature Fluctuation < ±0.5℃ ,Temperature Deviation < ±2.0℃



  • Humidity control accuracy: Humidity deviation < ±3%RH(Humidity deviation > 75%RH),Humidity deviation< ±5%RH(Humidity deviation ≤ 75%RH)



  • Temperature control rate: Heating Rising Rate: 1 ~ 3℃ /Min;Cooling Fall Rate: 0.7 ~ 1℃ /Min

SAFETY, STANDARDS, & DATA


  • Safety Device: Compres or overheat protection and overload protection;Fan overheating protection;Temperature upper and lower limit deviation alarm;Independent



  • Data management: With electronic data storage function,Data can be exported by USB flash drive.





MATERIAL:


  • Airduct System: Adopt the latest airduct system design achieves good uniform of temperature and humidity form different parts inside the chamber.



  • Chamber Materials:The exterior is coated with high quality steel plate,The liner is made of mirror stainless steel 304



  • Refrigeration System: The imported fully enclosed industrial compressor, high efficiency, low noise, stable continuous operation.







MODEL & PARAMETERS:


MODEL TEMP CONTROL RANGE HUMIDITY RANGE(RH) CAPACITY INTER DIMEN(W×D×H) EXTER DIMEN(W×D×H) TRAYS
XCH-100JSB -40℃ ~ 150℃
20~ 98% 100L 450×450×500 (mm) 680×1040×1570(mm) 2
XCH-250JSB -40℃ ~ 150℃ 50 ~ 90% 250L 600×600×700(mm) 1100×1000×1900(mm) 2
XCH-500JSB -40℃ ~ 150℃ 50 ~ 90% 500L 800×700×900(mm) 1280×1180×2000(mm) 3
XCH-1000JSB -40℃ ~ 150℃ 50 ~ 90% 1000L 1000×1000×1000(mm) 1500×1500×2200(mm) 4





leave a message
If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.
Get In Touch With



The XCH Biomedical brand test chambers can meet the temperature, humidity and vacuum test requirements of the biomedical field. Using advanced technology and excellent accessories, our products are widely recognized by customers for their stable and qualified performance.



Contact Today!





Related Products

  • High And Low Temperature Humidity Alternating Test Chamber
    High And Low Temperature Humidity Alternating Test Chamber

    XCH JSB Series is a temperature & humidity chamber with high and low temperature Chamber. Through the test and detection, so as to judge whether the performance of the product meets the design requirements for testing.   Model: XCH-JSB Temp.Range:-40 - 150℃ Humi.Range: 20 - 98% RH Environment temperature: +5 ~ 35℃ Temperature Fluctuation: <±0.5℃ Temperature deviation: <±2.0℃ Humidity deviation: < ±5%RH(Humidity deviation ≤ 75%RH) Power: AC 220V±10% 50HZ

    Read More

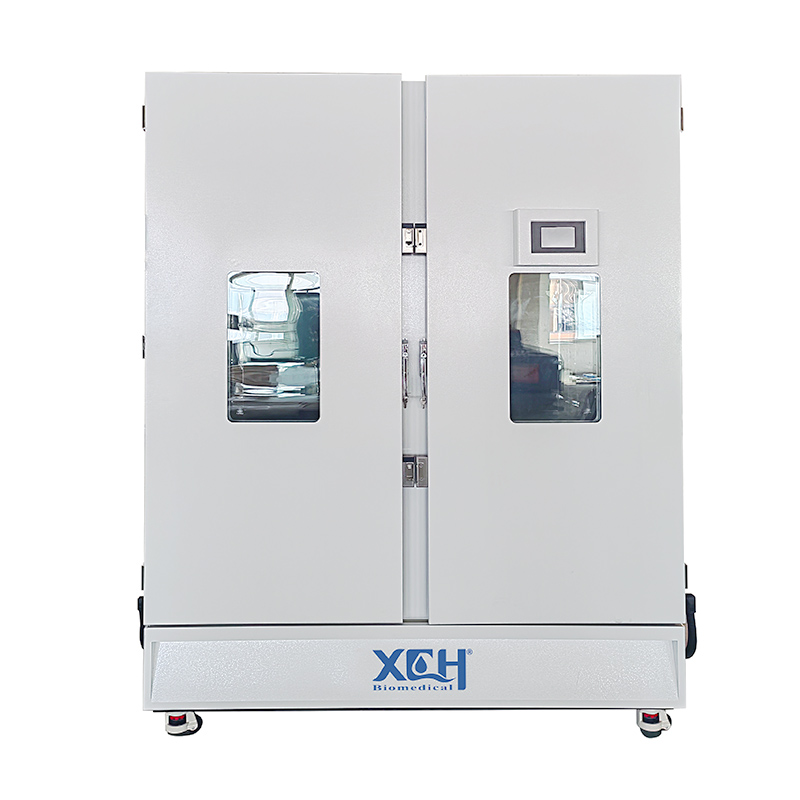

  • Double door medical stability environmental test chamber
