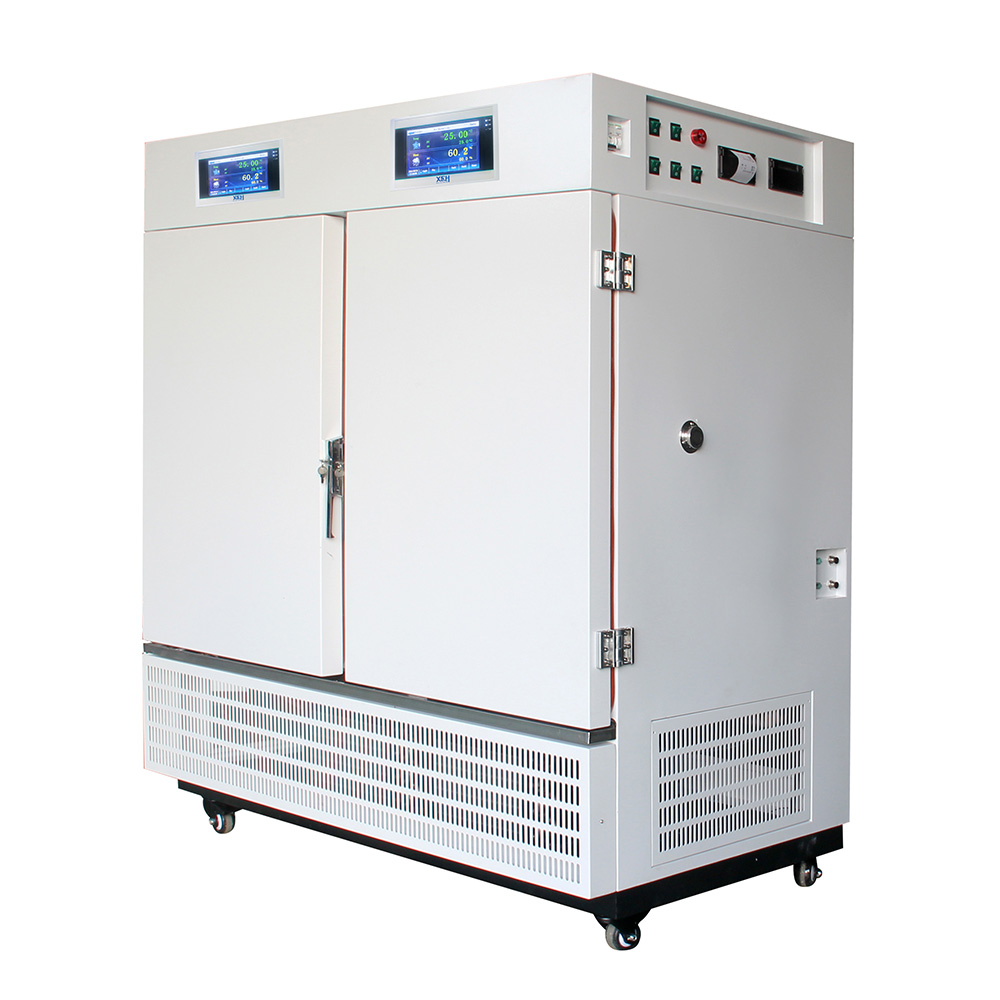

Multi-Chamber Pharmaceutical stability test chambers
XCH CSD Series Biomedical stability chambers, Two case independent control,CSD series, A Chamber has three functions: temperature, humidity and illumination. near ultraviolet lamp tube can be optional,Meet the requirements of the stability test guidelines of the 2020 edition of pharmacopoeia; B Chamber can only control and record temperature and humidity.
Key Features:
Stability Test System:
- CSD series: A with function of illumination, Illumination Range: 100~8000Lux,Near Ultraviolet Range: 0.84 ~ 5w / m2 ,Illuminance deviation: 4500±500Lux
- Structure Design: Adopt the latest airduct system design achieves good uniform of temperature and humidity form different parts inside the chamber.
- Insulation material: Integral polyurethane foam technology, with good heat preservation and moisture retention performance.
- Chamber Material: The liner is made of mirror stainless steel 304, no pollution source, easy to clean
- Refrigerating System: The imported fully enclosed industrial compressor, long-life, low noise
Temperature Control and Safety Monitoring:
- Temperature Fluctuation ≤ ±0.5℃
- Temperature Deviation ≤ ±1.0℃
- Installed Power: AC220V±10% 50HZ
- Environment temperature: +5~35℃
Humidity Control:
- Humidity Fluctuation ≤ ±3%RH
- Humidity Deviation ≤ ±3%RH
- Humidity System: Original imported capacitive humidity sensor, direct detection of humidity,maintenance-free
Easy to Operate:

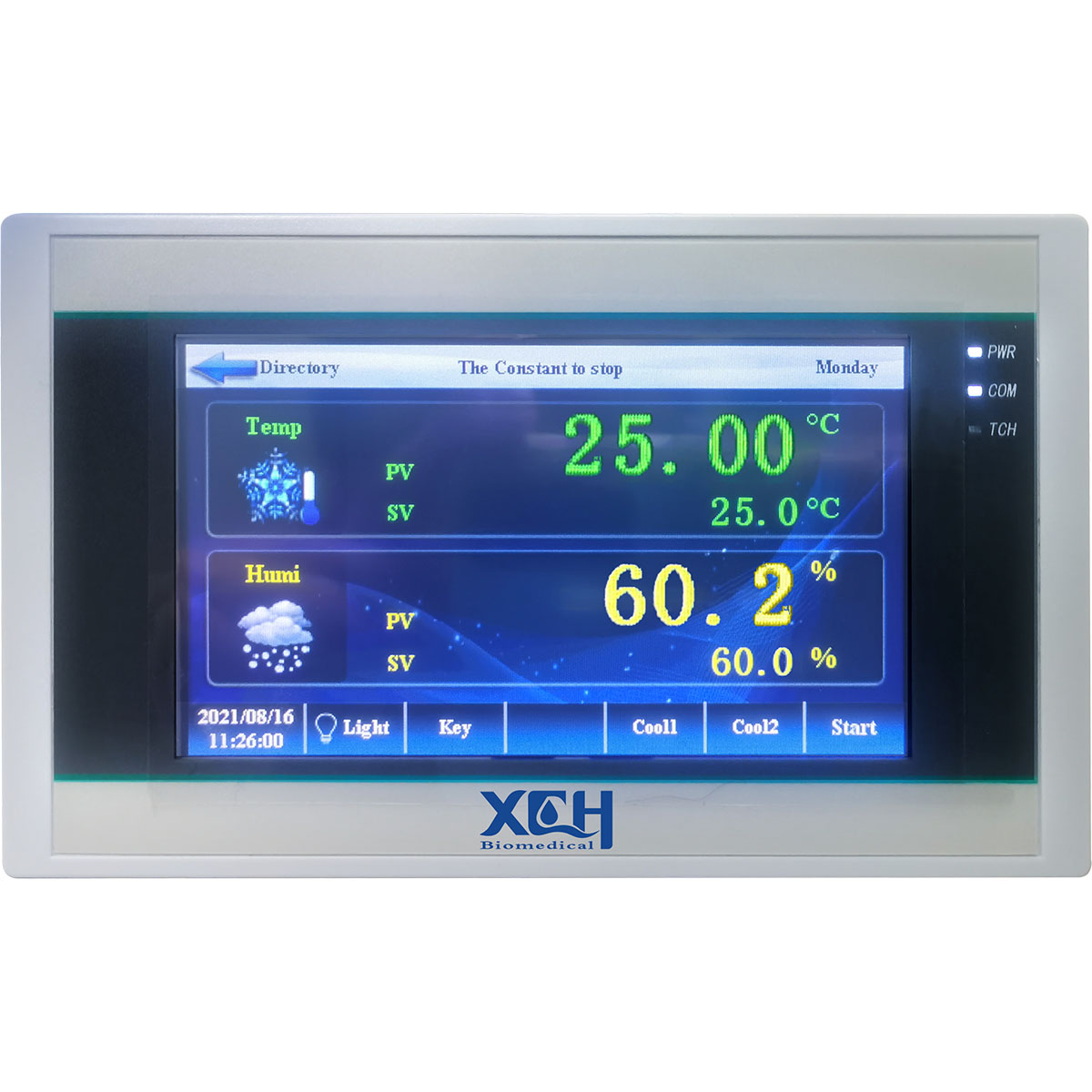

- Control System: Two sets color touch screen temperature and humidity controller,High control accuracy,With three levels permission,audit trail
- Illumination System: Equipped with illumination sensor,direct illumination display, equipped with illumination storage and printing system
- Data Record: Equipped with data collection system conform to GMP requirements,Two sets Needle micro printer and USB output port as standard
Safety Control:
- Safety device: compressor overheat and overpressure overload protection, Fan overheat protection、water shortage protection.
- Live Alarm: Temperature and humidity upper limit deviation alarm, independent overtemperature alarm.
- Dual Protection: Equipped with double insurance dry fire protection system, equipped with independent overtemperature protection system, can automatically cut off the power supply
- Meet a criterion: Meet ICHQ1A(R2)、Q1B、Chinese Pharmacopoeia 2020 edition
- SMS alarm: Optional

Stability chamber specification:
MODEL
TEMP CONTROL RANGE(℃)
HUMIDITY CONTROL RANGE
CAPACITY(L)
INTER DIMEN
EXTER DIMEN
POWER
Shelf (Standard)
Shelf (Standard)
Remarks

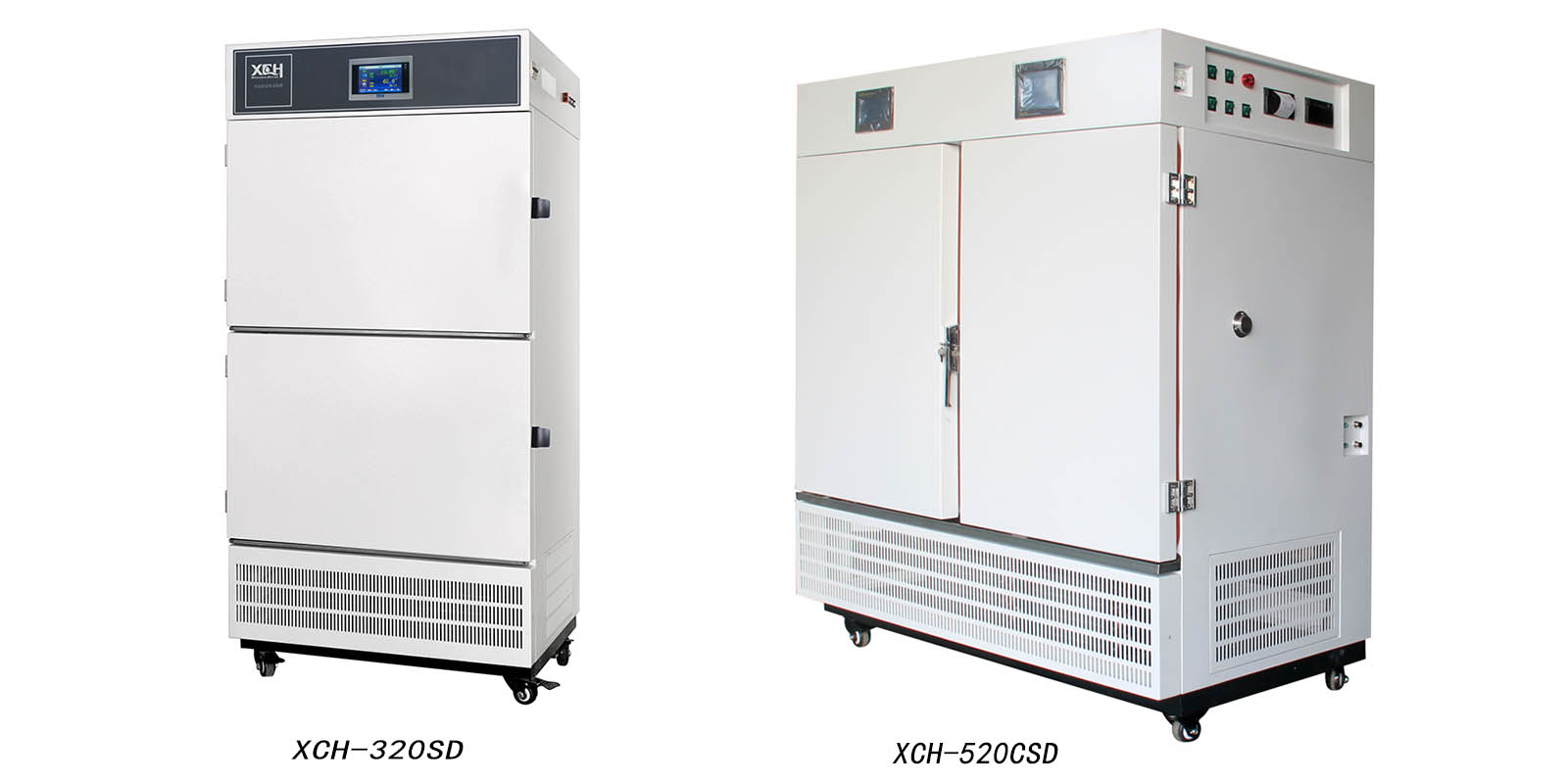

XCH-320CSD
15 ~ 65
20 ~ 95%
150
680×500×460
840×840×1880
2.5
2
Up
A box (temperature + humidity + visible light)
680×500×460
2.5
2
Down
Box B (Temp + Humidity)
XCH-520CSD
15 ~ 65
20 ~ 95%
250
600×500×830
1560×870×1650
3.0
3
Left
A box (temperature + humidity + visible light)
680×500×460
3.0
Right
Box B (Temp + Humidity)
XCH-620CSD
15 ~ 65
20 ~ 95%
300
600×500×1000
1560×870×1820
3.2
3
Left
A box (temperature + humidity + visible light)
600×500×1000
1560×870×1820
3
Right
Box B (Temp + Humidity)
Double chamber, independent control
W×D×H(mm)
W×D×H(mm)
840×840×1880
1560×870×1650
3
3.2
Remark:
CSD series A equipped with temperature, humidity, visible light and NUV light four functions,Illumination measurement standard with visible and near ultraviolet sensors.Visible and near ultraviolet values are automatically printed and stored;Visible Range: 100 ~ 8000Lux,4500±500Lux,The total illumination of the light test shall not be less than 1.2×106 Lux·hr Near ultraviolet range: 0.84 ~ 5w/㎡,Near ultraviolet energy shall not be less than 200w·hr//㎡
Application:
XCH-CSD series Medicine Stability Testing Chamber Dual Chamber provide long-term stable temperature, humidity and light environment to detect the expiration date of drugs, used for long-term test, accelerated test, high humidity test, strong light irradiation test and drug stability test.
Advantages:
Sensitive, small system error
Two boxes of independent control
No pollution source and is easy to clean
Low cost
