Medicine Stability Testing Chamber,Temperature Humidity  Chamber, Medicine Testing Chamber
Medicine Stability Testing Chamber,Temperature Humidity  Chamber, Medicine Testing Chamber

Comprehensive medicine stability chamber 250L XCH-250CSD

The single door low temperature stability test chamber, using advanced high-quality components and manufacturing technology, stable and reliable performance, suitable for GMP certified users. Creates a temperature, humidity, light environment for low temperature stability test chamber evaluation. Suitable for accelerated testing, long-term testing, wet test, and strong light irradiation test.


Model: XCH-250CSD

Capacity: 250L

TEMP Range: 15~65℃

Fluctuation: <±0.5℃
Deviation:<±1.0℃
Humidity Range: 20~95%
Fluctuation: <±3.0%RH
Deviation:<±3.0%RH
Environment temperature: +5 ~ 35℃


  • Item no.:

    150CSD~500CSD-2
  • Product origin:

    China

Comprehensive medicine stability test chamber

The Comprehensive medicine stability test chamber, apply to investigate the stability of drug substances and preparations, Can control temperature, humidity, visible light, near ultraviolet,suitable for GMP and CGMP certified users.

Application:

Medicine Stability Testing Chamber apply to investigate the stability of drug substances and preparations, suitable for GMP and CGMP certified users.


Key Features:

Temperature and Humidity Control

  • Temperature Control: Temperature Fluctuation < ±0.5℃ ,Temperature Deviation< ±1.0℃
  • Humidity Control: Humidity Fluctuation ≤ ±3%RH,Humidity Deviation ≤ ±3%RH
  • Installed Power: AC220V±10% 50HZ
  • Environment temperature: +5~35℃

High-end quality and design
  • Structure Design:Adopt the latest airduct system design achieves good uniform of temperature and humidity form different parts inside the chamber.
  • Insulation material: Integral polyurethane foam technology, with good heat preservation and moisture retention performance.

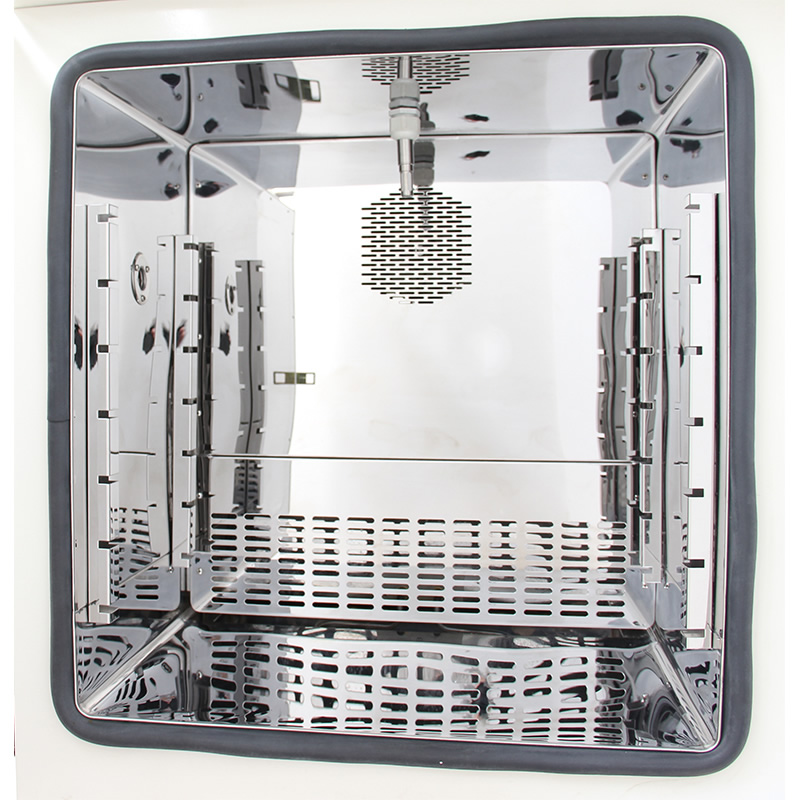

  • Chamber Material: The liner is made of mirror stainless steel 304, no pollution source, easy to clean.
  • Refrigeration System: Two sets imported brand fully enclosed compressor,longlife,low noise
  • Humidity System: Original imported capacitive humidity sensor, direct detection of humidity,maintenance-free.

Easy to Operation:
  • Control System: Color touch screen temperature and humidity controller,High control accuracy,With three levels permission,audit trail.

Data Record Function:
  • Data Record: Equipped with data collection system conform to GMP requirements,Needle micro printer and USB output port as standard.

Safety Device:
  • Safety device: compressor overheat and overpressure overload protection, Fan overheat protection、water shortage protection
  • Dual Protection: Equipped with double insurance dry fire protection system, equipped with independent overtemperature protection system, can automatically cut off the power supply
  • Live Alarm: Temperature and humidity upper limit deviation alarm, independent overtemperature alarm.
  • Meet a criterion: Meet ICHQ1A(R2)、Chinese Pharmacopoeia 2020 edition.
  • SMS alarm: Optional


Stability chamber specification:

MODEL

TEMP RANGE(℃)

Humidity

RANGE

CAPACITY(L)

INTERNAL DIMEN(mm)

W×D×H

EXTERNAL DIMEN(mm)

W×D×H

POWER(KW)

SHELF(Standard)

XCH-150CSD-2

15~65

20 ~ 95%

150

 600×405×620

760×830×1480

1.2

3

XCH-250CSD-2

15~65

20 ~ 95%

250

 600×500×830

760×870×1650


1.5

3

XCH-400CSD-2

15~65

20 ~ 95%

400

 600×700×950

760×1060×1750

2.0

3

XCH-500CSD-2

15~65

20 ~ 95%

500

 680×680×1080

 840×1050×1850

2.2

4

Remarks:

CSD series is comprehensive medicine stability testing chamber equip with temperature、humidity、visible light、near ultraviolet function, Illuminance measurement standard with visible and near ultraviolet sensors,visible and near ultraviolet values are automatically printed and stored;Visible Range: 100 ~ 8000Lux,Automatic display,automatic setting,automatic adjustment,The total illumination of the light test shall not be less than 1.2x106 Lux·hr Near ultraviolet range: 0.84 ~ 5w/㎡,Automatic display,automatic setting, automatic adjustment; Near ultraviolet energy shall not be less than 200w·hr//㎡


Advantages:

High performance, low noise
High sensitivity, low annual drift
No pollution source

Easy to clean
