Photo Stability Test Chamber, Medicine Stability Chamber,

Strong Medicine Photostability Test Chamber 150TPS

XCH-150TPS medicine Photostability Test Chamber is equipped with visible light and near-ultraviolet lamp tube, Medicine Stability Chamber can independently control the type of light source, and can print and record visible light illumination and near-ultraviolet radiation in real time. Visible light and near-ultraviolet can be directly set, automatically adjusted and precisely controlled.

Model: 150TPS

TEMP Range: 15~50℃

Fluctuation: ＜±1℃

TEMP Deviation: ＜ ±2.0℃(SAME LEVEL)
Light Range: Visible light range: 100 ~ 8000LUX
Total illumination should not be less than 1.2 x 10^6Lux·hr
UV range: NUV range: 0.84 ~ 5w/m squared; The near-UV energy is no less than 200w•hr/㎡
UV wavelength: NUV wavelength: 320 ~ 400nm;

Item no.:
150TPS-500TPS
Product origin:
China

request a quote

Product Overview

Strong Medicine Photo Stability Test Chamber

What is photo stability chamber? It is a advanced temperature controlled stability chambers for precise temperature control. FDA/ICH Approved. XCH stability test chamber can be equipped with near-ultraviolet lamps, meeting the requirements of the guidelines for the stability test of the 2020 edition of the Pharmacopoei. And widely used for research on the pharmaceutical industry,Medical industry,Biotechnology industry and other life science-related industries.

Key Features:

• Temperature Control: Temperature Fluctuation ≤ ±1.0℃，Temperature Deviation ≤ ±2.0℃（Same layer）

• Illumination Control: The total illumination is not less than 1.2×106 Lux·hr，Near ultraviolet energy is not less than 200w·hr/m2

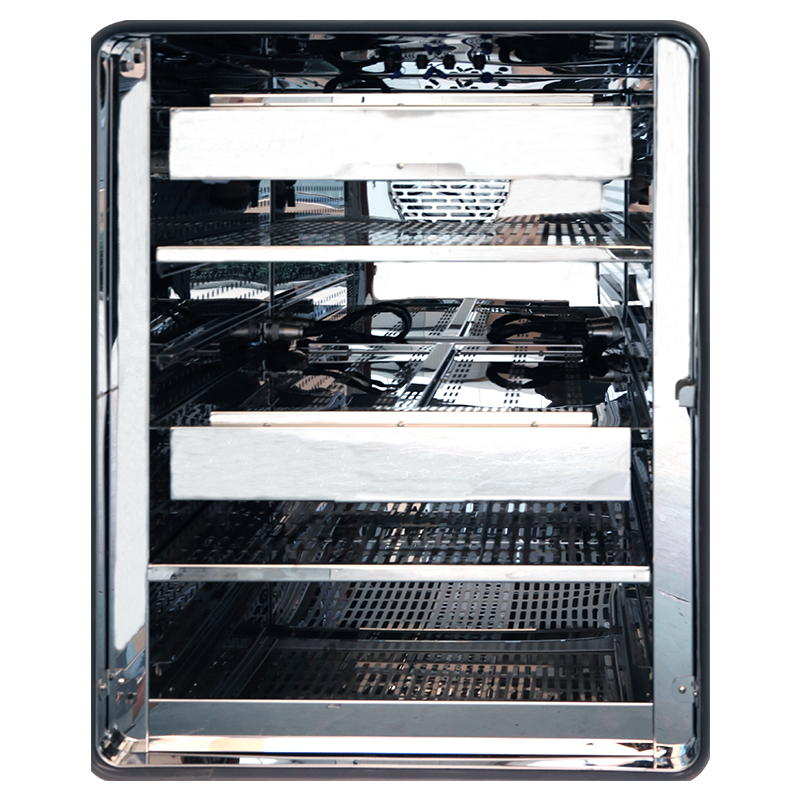

• Light Source Design: Top light source design, the sample of different position of shelf has good uniformity of receiving light source irradiation

• Insulation material: Integral polyurethane foam technology, with good heat preservation and moisture retention performance

• Chamber Material: The liner is made of mirror stainless steel 304, no pollution source, easy to clean,the out shell is plastic sprayed steel plate

• Refrigerating System: The imported fully enclosed industrial compressor, long-life, low noise.

• Control System: The imported digital display illuminance controller,High control accuracy.

• Safety device: compressor overheat and overpressure overload protection, Fan overheat protection.

• Dual Protection: Equipped with independent overtemperature protection system, can automatically cut off the power supply

• Data Record: Equipped with data collection system conform to GMP requirements,Needle micro printer and USB output port as standard

• Meet a criterion: Meet ICHQ1B、Chinese Pharmacopoeia 2020 edition

• Installed Power: AC220V±10% 50HZ

• Environment temperature: +5~35℃

• SMS alarm: Optional.

Stability chamber specification:

MODEL	TEMP RANGE	CAPACITY(L)	INTERNAL DIMEN(mm) W×D×H	EXTERNAL DIMEN(mm) W×D×H	POWER(KW)	TRAY	SystemIllumination range	Remarks
XCH-150TPS	15～50℃	150	650×490×500	800×790×1250	1.0	1	Visible light: 100 ～ 8000Lux Near UV: 0.84 ～ 5w/m2	*1independent light source system 1printing storage system*
XCH-250TPS	15～50℃	250	600×500×830	760×870×1650	1.5	2		2independent light source system 2printing storage system
XCH-500TPS	15～50℃	500	680×680×1070	840×1050×1850	2.2	3		3*independent light source system Print and store 3 layers of data
XCH-250LTPS	2～30℃	250	600×500×830	760×870×1650	1.5	1	Visible light: 100 ～ 5000Lux Near UV: 0.84 ～ 1w/m	1independent light source system 1printing storage system
XCH-500LTPS	2～30℃	500	680×680×1070	840×1050×1850	2.2	2	Visible light: 100 ～ 5000Lux Near UV: 0.84 ～ 1w/m	2*independent light source system Print and store 2 layers of data

Advantages:

No maintenance.No pollution source
High sensitivity, low annual drift
High precision

Safety,with alarm system
