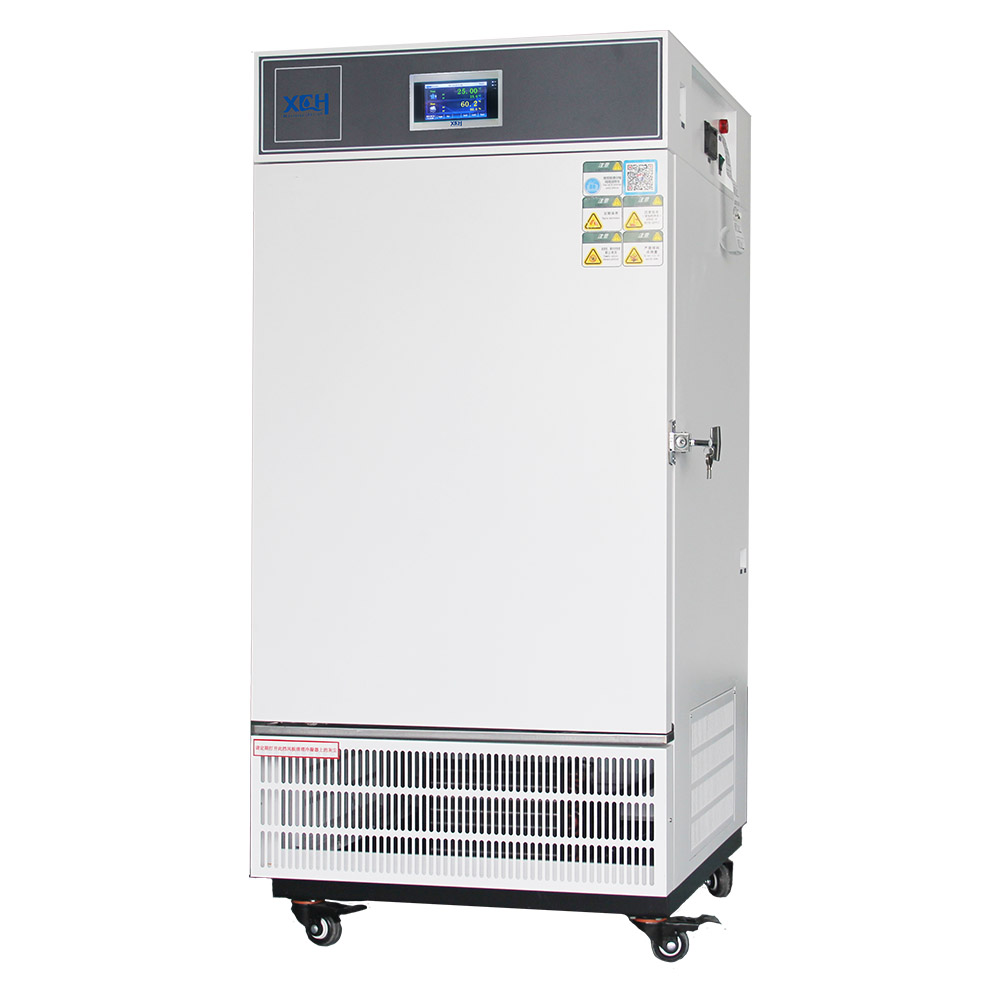

Temperature Humidity Controlled Medicine Stability Test Chamber XCH-400SD

The XCH-400SD single door medicine drug stability environmental testing chamber, using advanced high-quality components and manufacturing technology, stable and reliable performance, suitable for GMP certified users. Creates a temperature, humidity, light environment for drug stability evaluation. Suitable for accelerated testing, long-term testing, wet test, climatic test and strong light irradiation test.


Model: XCH-400SD

Capacity: 400L

  • Item no.:

    150SD~500SD-2

Temperature Humidity Controlled Medicine Stability Test Chamber XCH-400SD

The XCH-400SD Single Door Medicine Drug Stability Testing Chamber, Temperature Humidity Controlled chamber, using the latest air duct system design, the uniformity of temperature and humidity in different positions in the box is good; Integral polyurethane foaming technology, good heat preservation and moisturizing performance.


Performance parameters:

Temperature Control

Temperature Fluctuation ≤ ±0.5℃,Temperature Deviation ≤ ±1.0℃

TEMP Range

10~65℃

Humidity Range
20~95%
Fluctuation
<±3.0%RH
Environment temperature
+5~35℃


Key Features:

Temperature Control
Temperature Fluctuation ≤ ±0.5℃,Temperature Deviation ≤ ±1.0℃
Structure Design

Adopt the latest airduct system design achieves good uniform of temperature and humidiy form different parts inside the chamber.

Chamber Material
The liner is made of mirror stainless steel 304, no pollution source, easy to clean.
Refrigerating System

Two sets original imported fully enclosed industrial compressor, high efficiency, low noise, ensure the long-term continuous operation of equipment.

Humidity System
Original imported capacitive humidity sensor, direct detection of humidity,maintenance-free.
Control System

Color touch screen temperature and humidity controller,High control accuracy, With three levels permission,audit trail.

Safety device

compressor overheat and over-pressure overload protection, Fan overheat protection, water shortage protection.

Dual Protection

Equipped with double insurance dry fire protection system, equipped with independent over-temperature protection system, can automatically cut off the power supply.

Data Record

Equipped with data collection system conform to GMP requirements,Needle micro printer and USB output port as standard.

Live Alarm

Temperature and humidity upper limit deviation alarm, independent over-temperature alarm.

Meet a criterion
Meet ICHQ1A(R2), Chinese Pharmacopoeia 2020 edition.
Installed Power
AC220V±10% 50HZ
SMS alarm
Optional
Advantages

High performance, low noise

High sensitivity, low annual drift

No pollution source

Easy to clean


Medicine Stability Testing Chamber apply to investigate the stability of drug substances and preparations, suitable for GMP and CGMP certified users.

Stability chamber specification:

MODEL

TEMP RANGE

Humidity

RANGE

CAPACITY

INTERNAL DIMEN(mm)

W×D×H

EXTERNAL DIMEN(mm)

W×D×H

POWER

SHELF(Standard)

XCH-150SD-2

10~65℃

20 ~ 95%

150L

 600×405×630

760×830×1500

1.2KW

3

XCH-250SD-2

10~65℃

20 ~ 95%

250L

 600×500×830

760*870*1650

1.5KW

3

XCH-400SD-2

10~65℃

20 ~ 95%

400L

 600×700×950

760×1060×1750

2.0KW

3

XCH-500SD-2

10~65℃

20 ~ 95%

500L

 680×680×1080

 840×1050×1850

2.2KW

4

Please select the model you want or tell us your specific requirements, Contact us now.
