Stability Chamber Manufacturer
Comprehensive Stability Test Chamber 430L-830L
Home Comprehensive Stability Test Chamber 430L-830L

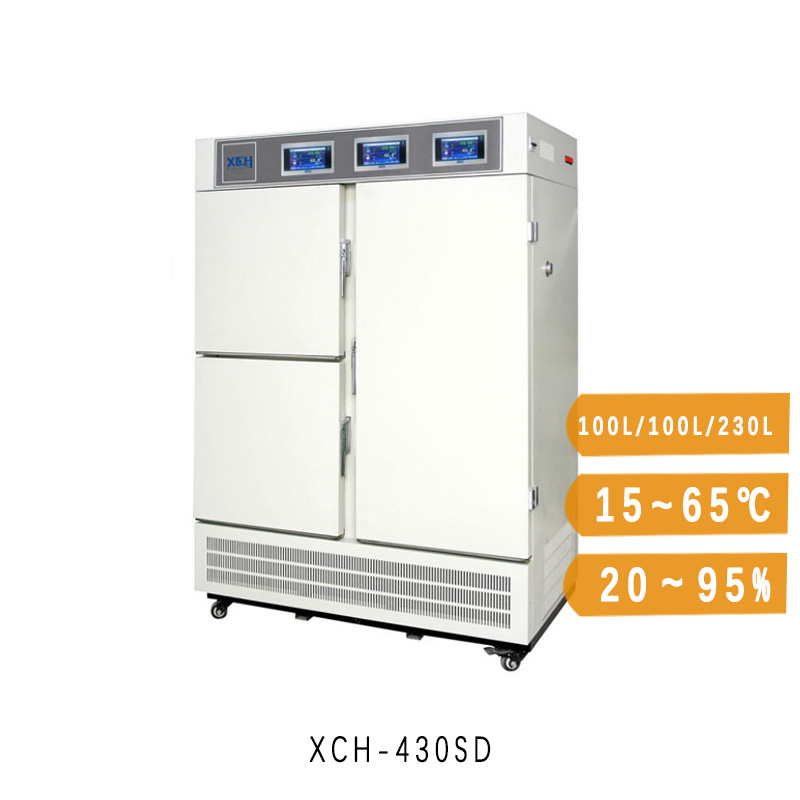

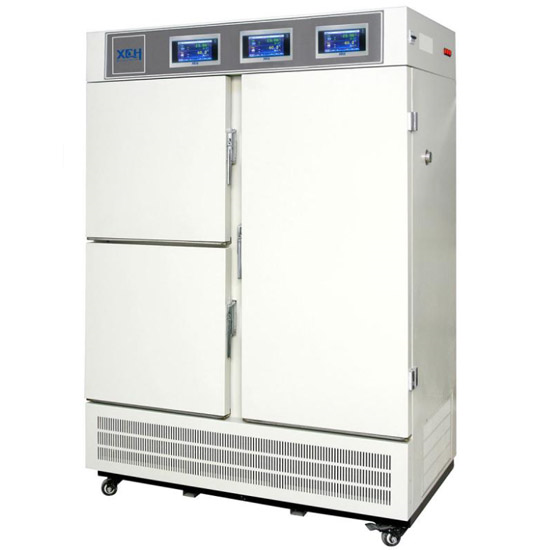

Comprehensive Drug Stability Test Chamber XCH-430SD

Comprehensive Drug Stability Test Chamber XCH-430SD

The multi-chamber Stability Chamber, Temp Only or Temp/RH. Adopts quality imported components and manufacturing process, with stable and reliable performance, independent control and climatic test of three boxes and temperature and humidity control of A, B and C boxes.



Model: XCH-430SD

TEMP Range: 15~65℃

Fluctuation: <±0.5℃

TEMP Deviation: < ±1.0℃

Humidity Range: 20 ~ 95%

Humidity Deviation:< ±3%RH

Capacity: 430L~830L

Environment temperature: +5 ~ 35℃

  • Item No. :

    XCH 430 - 830SD/CSD
  • Origin :

    China

FEATURES

  • STAINLESS STEEL STAINLESS STEEL

    The liner is made of mirror stainless steel 304

  • REAL-TIME ALARM REAL-TIME ALARM

    Upper and lower limit deviation alarm of temperature and humidity

  • 1 YEAR WARRANTY 1 YEAR WARRANTY

    All machines come with a 1-year limited warranty and engineer remote support.

  • HIGH SENSITIVITY HIGH SENSITIVITY

    Capacitive humidity sensor with high sensitivity.

TEMPERATURE & HUMIDITY Specs:


  • Temperature Control: Temperature Fluctuation ≤ ±0.5℃



  • Temperature Deviation ≤ ±1.0℃



  • Humidity Control: Humidity Fluctuation ≤ ±3%RH



  • Humidity Deviation ≤ ±3%RH



  • Meet a criterion : Meet ICHQ1A(R2)、Q1B、Chinese Pharmacopoeia 2020 edition.



  • Installed power:AC 220V±10%  50HZ



  • Environment temperature: +5~35℃



  • SMS alarm: Optional

CONTROL TECHNOLOGY


  • Refrigerating System: The imported fully enclosed industrial compressor, longlife, low noise.



  • Humidity System: Original imported capacitive humidity sensor, direct detection of humidity,maintenance-free



  • Control System: Three sets color touch screen temperature and humidity controller,High control accuracy,With three levels permission,audit trail



  • CSD series: A with function of illumination, Illumination Range:100 ~ 8000Lux,Near Ultraviolet Range 0.84 ~ 5w/m2,Illuminance deviation 4500±500Lux

SAFETY, STANDARDS, & DATA


  • Safety device: compressor overheat and overpressure overload protection, Fan overheat protection、water shortage protection



  • Dual Protection: Equipped with double insurance dry fire protection system, equipped with independent overtemperature protection system, can automatically cut off the power supply



  • Live Alarm: Temperature and humidity upper limit deviation alarm, independent overtemperature alarm.



  • Illumination System: Equipped with illumination sensor,direct illumination display, equipped with illumination storage and printing system



  • Data Record: Equipped with data collection system conform to GMP requirements,Three sets Needle micro printer and USB output port as standard.





MATERIAL:




  • Structure Design: Adopt the latest airduct system design achieves good uniform of temperature and humidity form different parts inside the chamber



  • Insulation material: Integral polyurethane foam technology, with good heat preservation and moisture retention performance



  • Chamber Material: The liner is made of mirror stainless steel 304, no pollution source, easy to clean.

MODEL & PARAMETERS:


Model Temp Range(℃) Humidity Range Capacity(L)

INTERNAL DIMEN(mm)

W×D×H

EXTERNAL DIMEN(mm)

W×D×H

Power(KW) TRAY Remark
XCH-430SD 15 ~ 65 20 ~ 95% 100 480×420×500 1320×780×1930 3.5 1 A Box(Temperature + Humidity)
100 480×420×500 3.5 2 B Box(Temperature + Humidity)
230 480×420×1100 3.5 4 C Box(Temperature + Humidity)
XCH-830SD 20 ~ 95% 200 600×600×600

1520x1060x1970

4.0 1 A Box(Temperature + Humidity)
200 600×600×600 4.0 2 B Box(Temperature + Humidity)
430 600×600×1200 4.0 4 C Box(Temperature + Humidity)
XCH-430CSD 15 ~ 65 N/A 100 480×420×500 1320×780×1930 3.5 1  A Box(temperature + visible light + near
UV)
20 ~ 95% 100 480×420×500 3.5 2 B Box(Temperature + Humidity)
20 ~ 95% 230 480×420×1100 3.5 4 C Box(Temperature + Humidity)
XCH-830CSD 15 ~ 65 N/A 200 600×600×600 1520x1060x1970 4.0 1  A Box(temperature + visible light + near
UV)
20 ~ 95% 200 600×600×600 4.0 2 B Box(Temperature + Humidity)
20 ~ 95% 430 600×600×1200 4.0 4 C Box(Temperature + Humidity)

Remark:

1.CSD series A equipped with temperature,visible light and NUV light three functions,Illumination measurement standard with visible and near ultraviolet sensors.
2.Visible and near ultraviolet values are automatically printed and stored:

  • Visible Range: 100 ~ 8000Lux, 4500±500Lux, The total illumination of the light test shall not be less than 1.2×106 Lux·hr;
  • Near ultraviolet range: 0.84 ~ 5w/㎡ ,Near ultraviolet energy shall not be less than 200w·hr//㎡.
