Laboratory Drying Oven, hot air drying oven,dry oven lab equipment, laboratory hot air oven

Lab electric thermostatic hot air drying oven

Electric thermostatic hot air drying oven produced by advanced laser CNC machining equipment; This electric oven for laboratory is used for drying, baking, melting wax and sterilizing in the laboratory of mineral enterprises.

Model: 9070A-9920A

Temp.Range: RT+10℃～250℃

Environment temperature: +5 ～ 40℃
Temperature Fluctuation: ±1.0℃

Temperature Accuracy: ±0.1℃

Power: AC 220V±10% 50HZ

Timing range: 1-9999min

Item no.:
9070A-9920A

request a quote

Product Overview

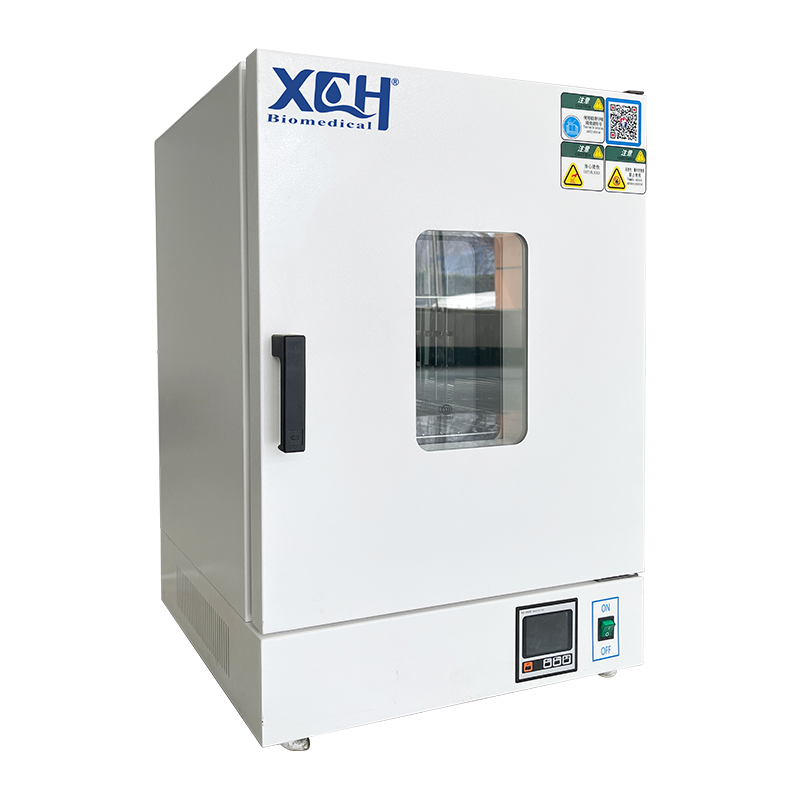

Lab Electric Thermostatic Hot Air Drying Oven

Electric thermostatic drying oven, produced by advanced laser and numerical control processing equipment. It is always used for drying, baking, waxing and sterilization in mining enterprises, laboratories and scientific research institutions.

Key Features:

• The box is made of mirror stainless steel by argon arc welding, and the outside of the box is made of high quality steel plate.

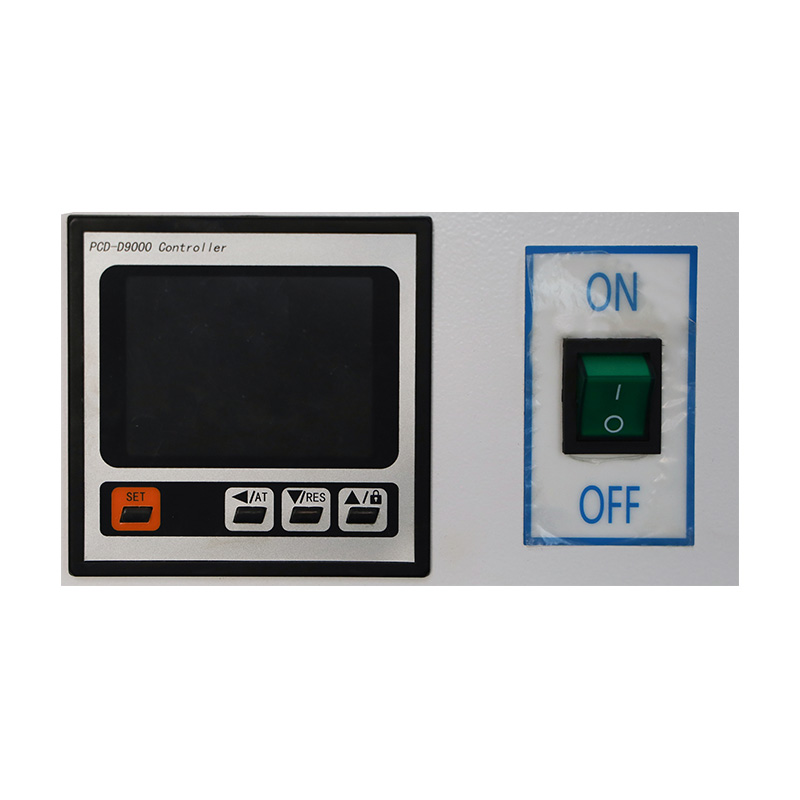

• Adopt microcomputer P.I.D. temperature controller with overtemperature deviation protection digital display, with timing function, accurate and reliable temperature control.
• The hot air circulation system is composed of a fan that can run continuously at high temperature and suitable air duct to improve the temperature uniformity in the working room.
• Using the new synthetic silicon seal strip, can operate at high temperature for a long time, long service life, easy to replace.
• Temperature Control: Constant temperature fluctuation is ±1℃ , Temperature accuracy is 0.1℃ .
• Timing Range: 1-9999min;
• Power: AC 220V±10% 50HZ
• Optional: Independent temperature limit alarm system will automatically stop when the temperature exceeds the limit to ensure the safe operation of the experiment without accidents.

Model & Parameters:

Here are different capacity drying ovens to choose. tell us the High and Low Temperature Test Chamber you need. We will have professional staff to contact you!

MODEL	TEMP RANGE	CAPACITY	INTER DIMEN W×D×H	EXTER DIMEN W×D×H	POWER	TRAYS
XCH-9070A	RT+10℃ ～ 250℃	70L	400×400×450(mm)	540×530×800(mm)	1.0KW	2
XCH-9140A	RT+10℃ ～ 250℃	140L	450×550×550(mm)	600×720×900(mm)	1.5KW	2
XCH-9240A	RT+10℃ ～ 250℃	240L	550×550×750(mm)	750×750×1150(mm)	2.5KW	2
XCH-9420A	RT+10℃ ～ 250℃	420L	640×585×1355(mm)	780×750×1880(mm)	3.1KW	3
XCH-9620A	RT+10℃ ～ 250℃	620L	780×600×1355(mm)	980×800×1880(mm)	4.0KW	4
XCH-9920A	RT+10℃ ～ 250℃	1000L	1000×600×1600(mm)	1140×800×2150(mm)	5.2KW	4

* Please consult the sales for specific technical parameters, XCH Biomedical reserves the right of explanation. Email: Christine@thchamber.com

Application:
Electric thermostatic hot air drying oven is used for drying, baking and disinfection in industrial and mining enterprises, chemical laboratory, R&D institution, etc. Mainly include the following departments:

Pharmaceutical industry
Biochemistry
Agricultural science
Other scientific research and industrial production departments

Advantages:
Fast induction, small system error
Safe and easy to operate
High temperature uniformity
High precision temperature control, good insulation
Low cost, Fast & safer shipping
