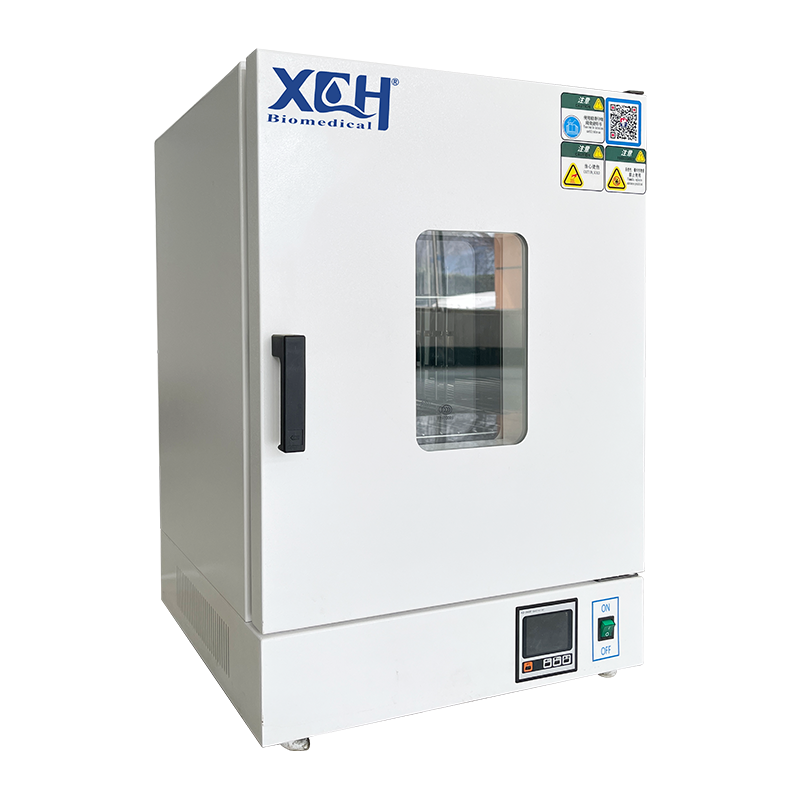

Electric thermostatic heat treatment hot air lab drying oven

Laboratory Hot Air Oven are used across a wide range of industries, research and laboratories for simple applications. The electric oven for laboratory ensures temperature stability and reproducibility for all your desired application needs.


Model: 9075A-9925A

Temp.Range: RT+10℃~300℃

Environment temperature: +5 ~ 40℃
Temperature Fluctuation: ±1.0℃

Temperature Accuracy: ±0.1℃

Power: AC 220V±10% 50HZ

Timing range: 1-9999min

  • Item no.:

    9075A-9925A
  • Product origin:

    China

Electric Thermostatic Heat Treatment Air Drying Oven

Electric thermostatic heat treatment air drying oven,best sample drying oven, is produced by advanced laser and numerical control processing equipment. It is used for drying, baking, waxing and sterilization in mining enterprises, laboratories and scientific research institutions.


Key Features:

• The box is made of mirror stainless steel by argon arc welding, and the outside of the box is made of high quality steel plate.
• Adopt microcomputer P.I.D. temperature controller with overtemperature deviation protection digital display, with timing function, accurate and reliable temperature control.
• The hot air circulation system is composed of a fan that can run continuously at high temperature and suitable air duct to improve the temperature uniformity in the working room.
• Using the new synthetic silicon seal strip, can operate at high temperature for a long time, long service life, easy to replace.
• Temperature Control: Constant temperature fluctuation is ±1℃ , Temperature accuracy is 0.1℃ .
• Timing Range: 1-9999min;
• Power: AC 220V±10% 50HZ
• Optional: Independent temperature limit alarm system will automatically stop when the temperature exceeds the limit to ensure the safe operation of the experiment without accidents

Power supply


AC 220V±10% 50HZ;

Ambient temperature: +5 ~ 40℃;

Timing range: 1-9999min


Model & Parameters:

MODEL TEMP RANGE CAPACITY INTER DIMEN
W×D×H
EXTER DIMEN
W×D×H
POWER TRAYS
XCH-9075A  RT+10℃ ~ 300 70L 450×400×450(mm) 740×618×630(mm) 1.0KW 2
XCH-9145A  RT+10℃ 300 140L 550×450×550(mm) 840×670×730(mm) 1.5KW 2
XCH-9245A  RT+10℃ 300 240L 600×500×750(mm) 880×720×930(mm) 2.5KW 2
XCH-9425A  RT+10℃ 300 420L 640×585×1355(mm) 780×750×1880(mm) 3.1KW 3
XCH-9625A
 RT+10℃ 300
620L 780×600×1355(mm)
980×800×1880(mm)
4.0KW 4
XCH-9925A  RT+10℃ 300
1000L 1000×600×1600(mm)
1140×800×2150(mm)
5.2KW 4


Application:
Electric thermostatic hot air drying oven, also a good laboratory drying oven, always used in thermostat storage, Baking, Biochemical, Pharmaceutical, Healthcare, Agricultural, Environmental protection, Disinfection, Sterilization, Drying, Roasting, Laboratory, Research, Engineering, Industry.

Advantages:
High quality, Quality Assurance
Safe and easy to operate
High temperature uniformity
Low cost, Fast shipping
