Double Chamber Stability Chamber 800L-3000L
Home Double Chamber Stability Chamber 800L-3000L

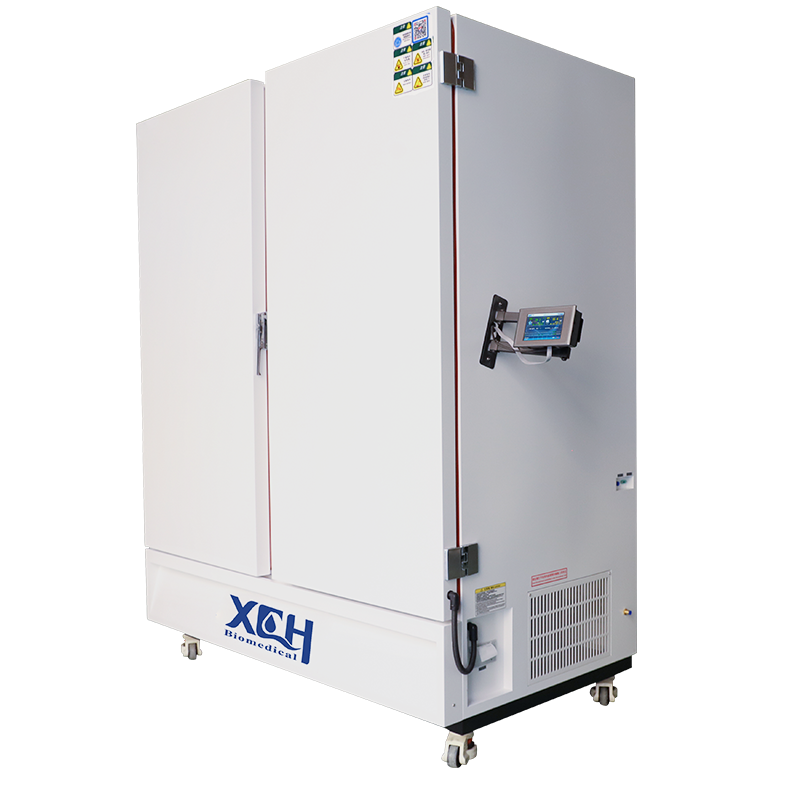

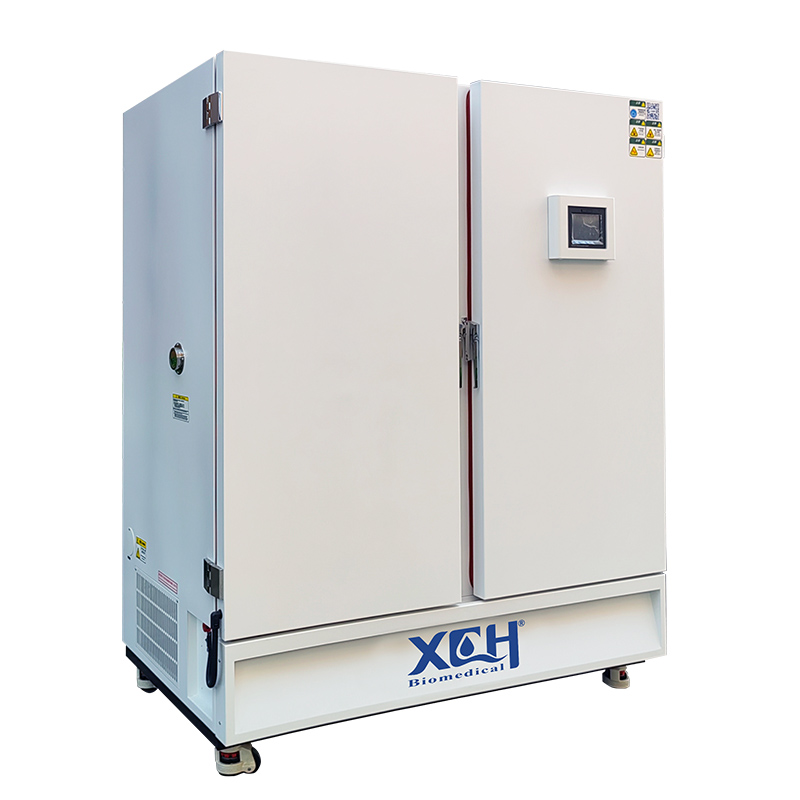

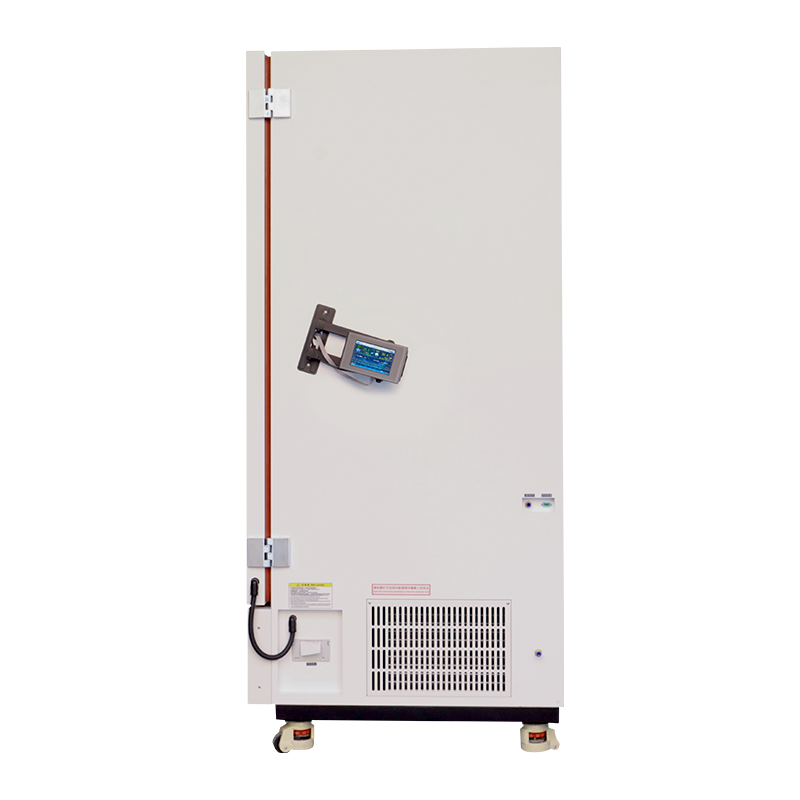

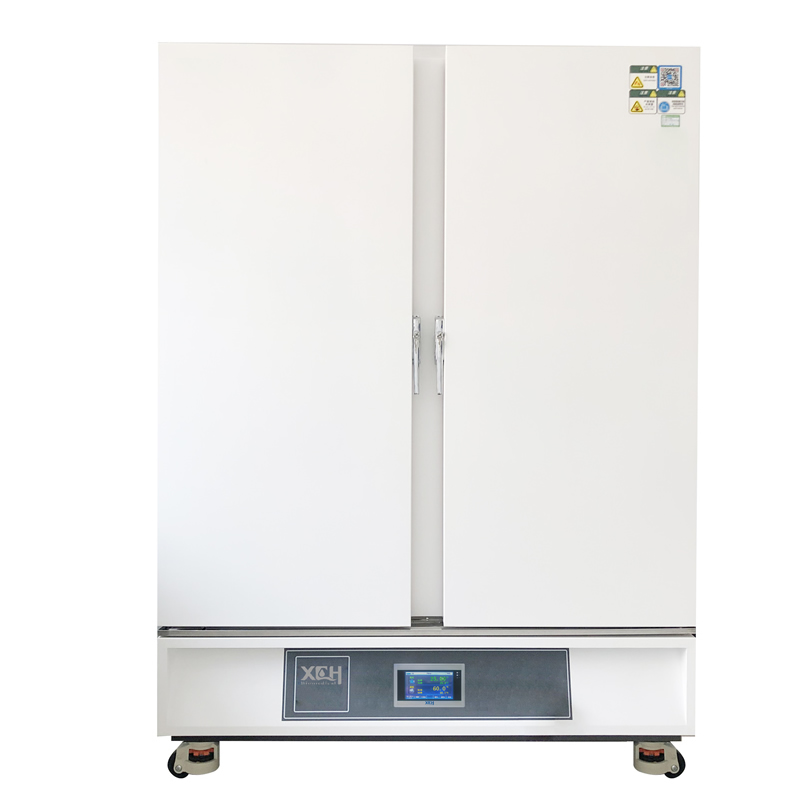

1000L Medical Stability Temperature Humidity Chamber XCH-1000SD

1000L Medical Stability Temperature Humidity Chamber XCH-1000SD

The XCH-1000SD Double Door Medicine Drug Stability Environmental Testing Chamber, using imported high-quality components and manufacturing technology, with Medicine Stability Chamber stable and reliable performance, suitable GMP certified users



Model: XCH-800SD-3000SD

TEMP Range: 10~65℃

TEMP Fluctuation: <±0.5℃

TEMP Deviation: < ±1.0℃

Humidity Range: 20 ~ 95%

Humidity Deviation:< ±3%RH

Capacity: 800L~3000L

Environment temperature: +5 ~ 35℃

  • Item No. :

    XCH - 1000SD
  • Origin :

    China

FEATURES

  • STAINLESS STEEL STAINLESS STEEL

    The liner is made of mirror stainless steel 304

  • REAL-TIME ALARM REAL-TIME ALARM

    Upper and lower limit deviation alarm of temperature and humidity

  • 1 YEAR WARRANTY 1 YEAR WARRANTY

    All machines come with a 1-year limited warranty and engineer remote support.

  • HIGH SENSITIVITY HIGH SENSITIVITY

    Capacitive humidity sensor with high sensitivity.

TEMPERATURE & HUMIDITY Specs:


Temperature Control: Temperature Fluctuation < ±0.5℃ ,Temperature Deviation < ±1.0℃

Humidity Control: Humidity Fluctuation ≤ ±3%RH,Humidity Deviation ≤ ±3%RH



  • Meet a criterion : Meet ICHQ1A(R2)、Chinese Pharmacopoeia 2020 edition.
  • Installed Power: AC220V±10% 50HZ
  • Environment temperature: +5~35℃



  • SMS alarm: Optional

CONTROL TECHNOLOGY


  • Refrigeration System: Two sets imported brand fully enclosed compressor,long-life,low noise



  • Humidity System: Original imported capacitive humidity sensor, direct detection of humidity,maintenance-free.

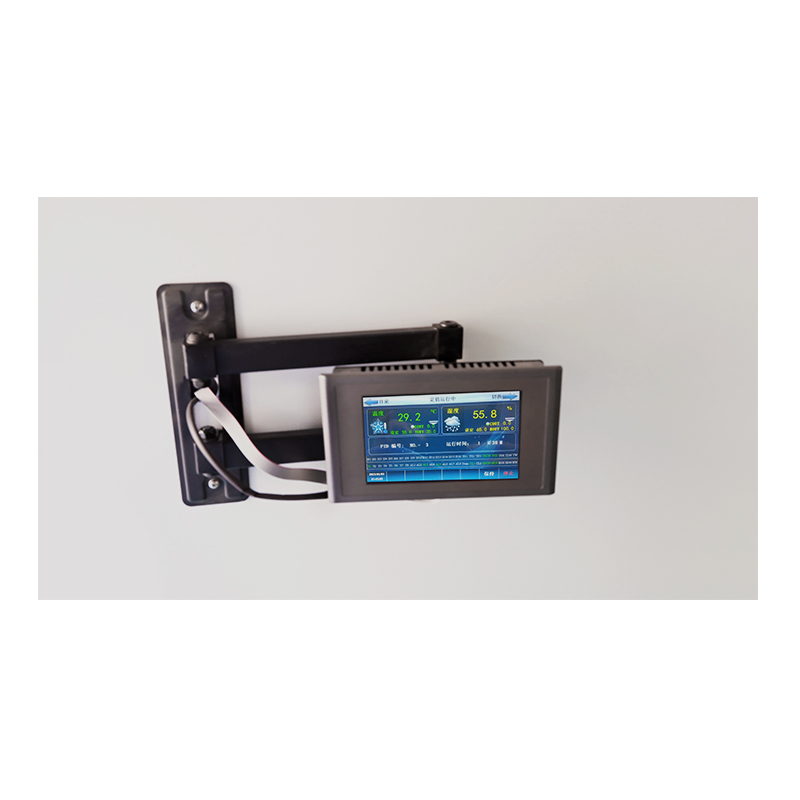

  • Control System: Color touch screen temperature and humidity controller,High control accuracy,With three levels permission,audit trail.

SAFETY, STANDARDS, & DATA


  • Safety device: compressor overheat and overpressure overload protection, Fan overheat protection、water shortage protection.



  • Dual Protection: Equipped with double insurance dry fire protection system, equipped with independent overtemperature protection system, can automatically cut off the power supply;



  • Data Record: Equipped with data collection system conform to GMP requirements,Needle micro printer and USB output port as standard.



  • Live Alarm: Temperature and humidity upper limit deviation alarm, independent overtemperature alarm.

MATERIAL:


  • Structure Design: Adopt the latest airduct system design achieves good uniform of temperature and humidity form different parts inside the chamber.

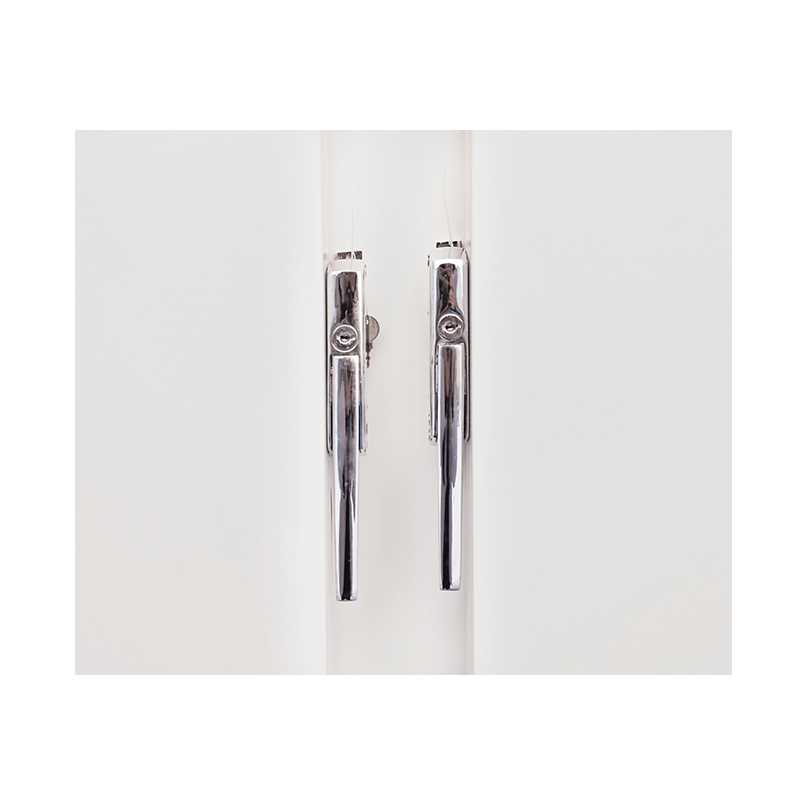

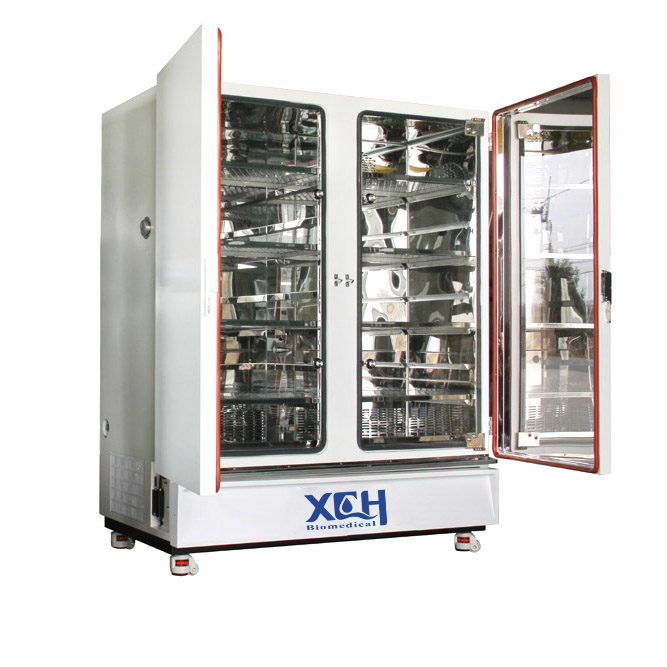

  • Double door structure: Only open a single door when sampling and lofting to minimize temperature and humidity impact



  • Insulation material: Integral polyurethane foam technology, with good heat preservation and moisture retention performance.

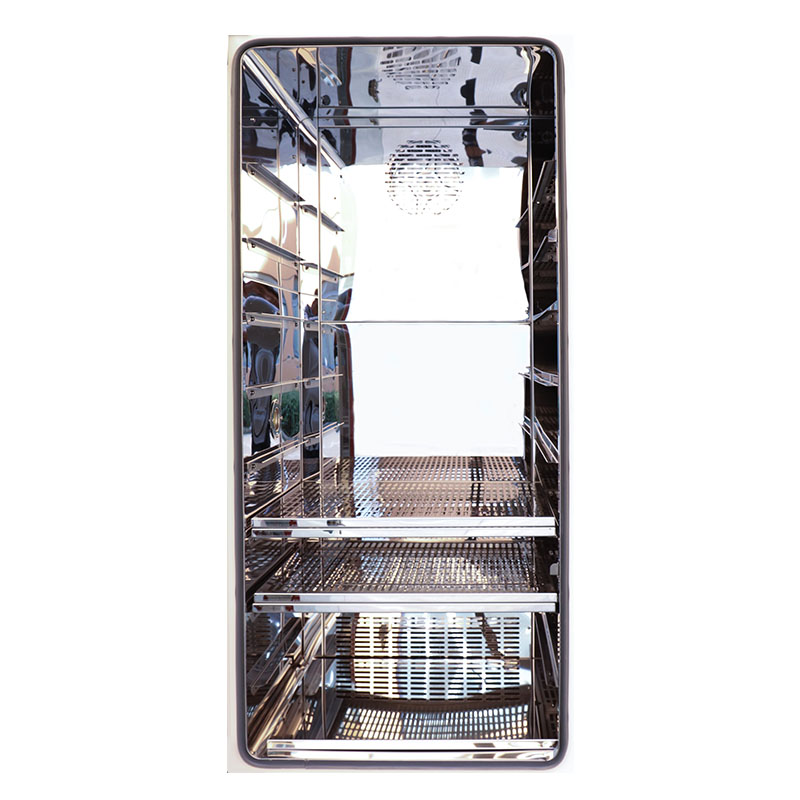

  • Chamber Material: The liner is made of mirror stainless steel 304, no pollution source, easy to clean.

MODEL & PARAMETERS:


MODEL

TEMP RANGE

Humidity

RANGE

CAPACITY(L)

INTERNAL DIMEN(mm)

W×D×H

EXTERNAL DIMEN(mm)

W×D×H

POWER(KW)

Shelf (Standard)

XCH-800SD-2

10~65℃

20 ~ 95%

800

1200×490×1360

1360×850×1960

2.5

4

XCH-1000SD-2

10~65℃

20 ~ 95%

1000

1400×510×1400

1550×870×1980

3.0

4

XCH-2000SD-2

10~65℃

20 ~ 95%

2000

1500×970×1370

1720×1400×1980

3.5

4

XCH-3000SD-2 10~65℃ 20 ~ 95% 3000 1600×1350×1370 1750×1780×2080 4.0 4
leave a message
If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.
Get In Touch With



The XCH Biomedical brand test chambers can meet the temperature, humidity and vacuum test requirements of the biomedical field. Using advanced technology and excellent accessories, our products are widely recognized by customers for their stable and qualified performance.
