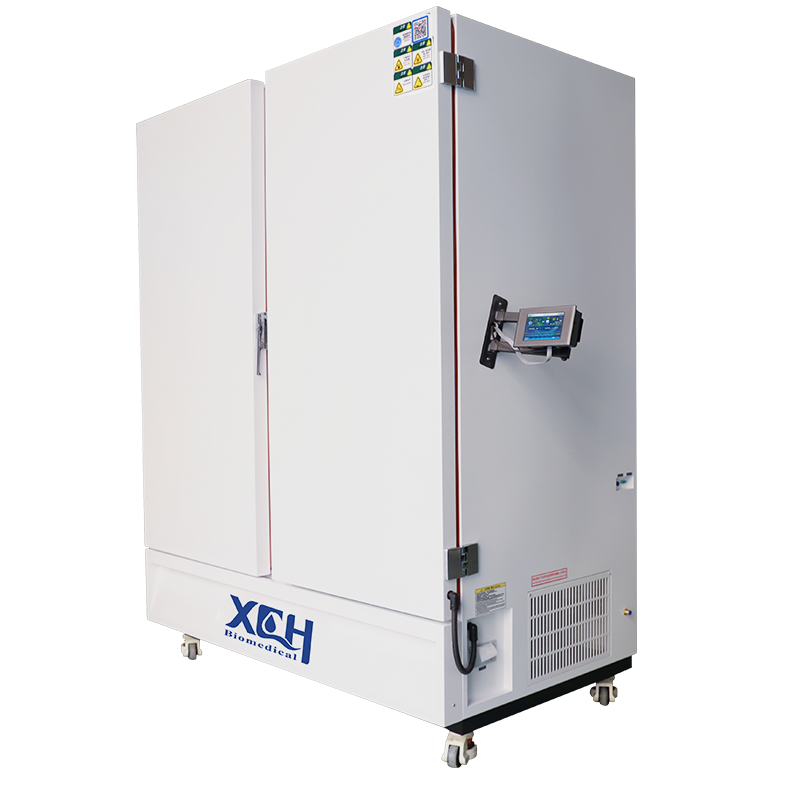

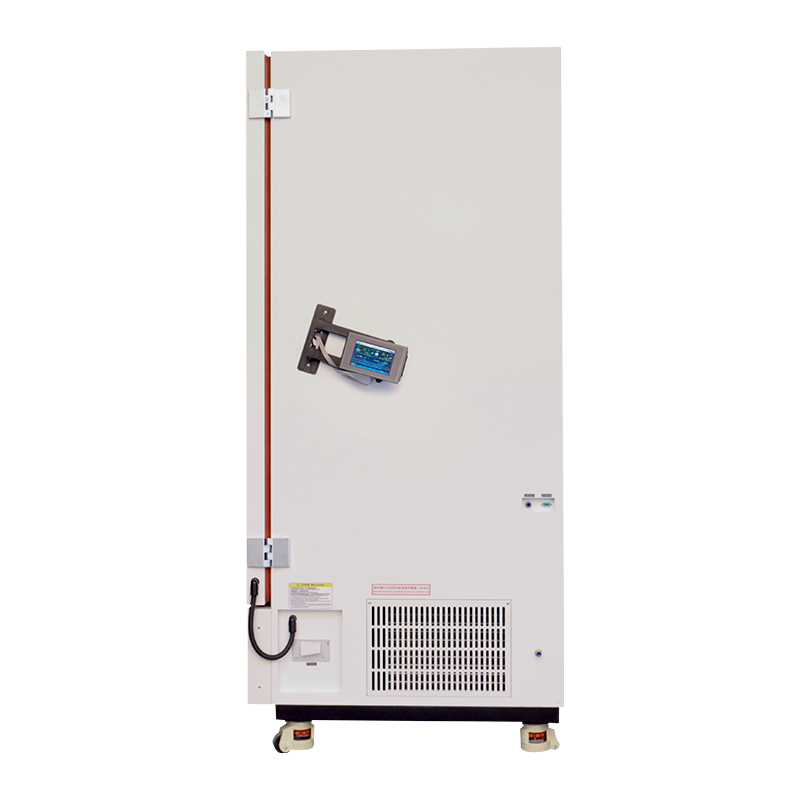

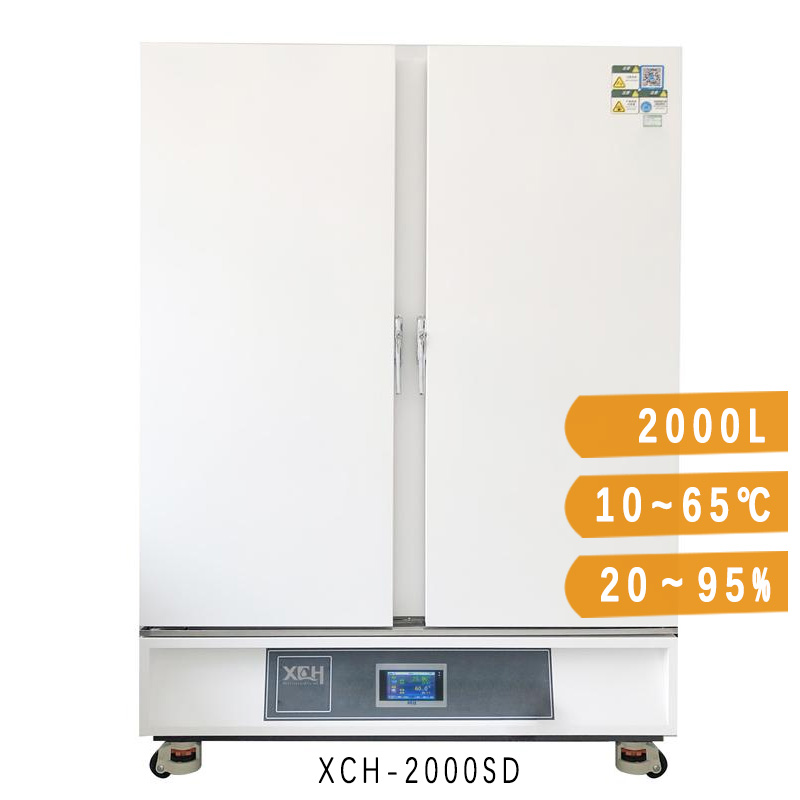

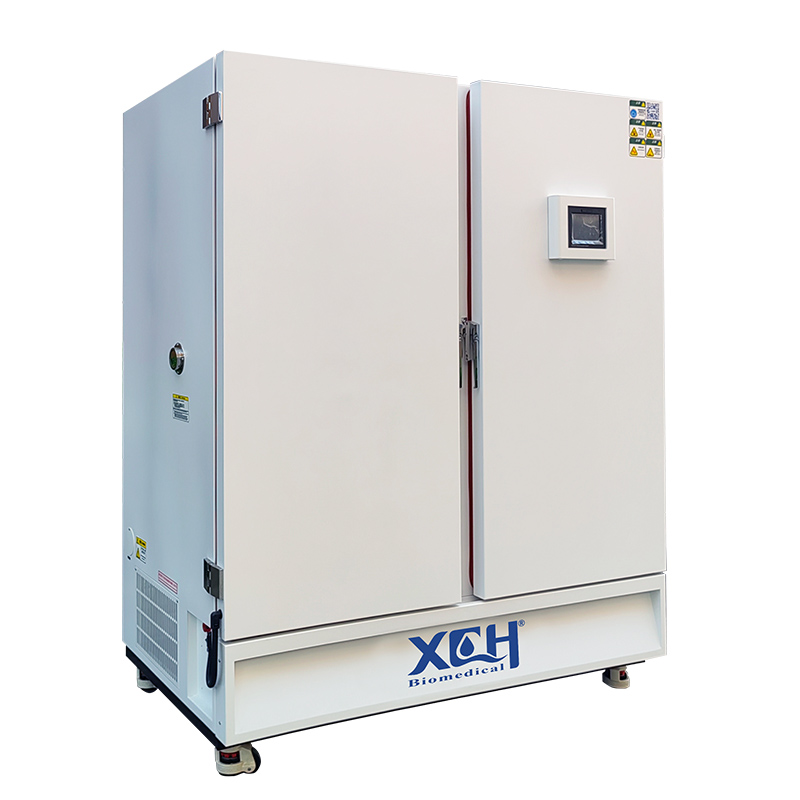

2000L Medical Stability Temperature Humidity Chamber XCH-2000SD

Model

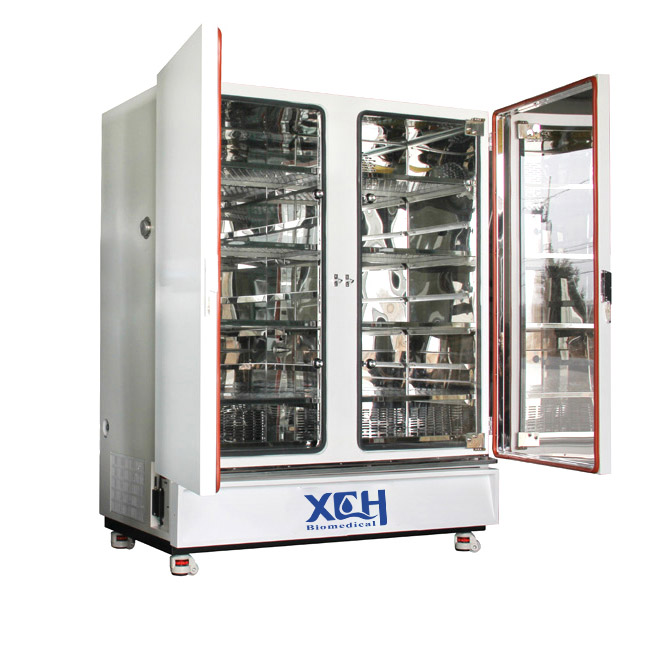

The XCH-2000SD Double Door Medicine Drug Stability Environmental Testing Chamber, using imported high-quality components and manufacturing technology, with Medicine Stability Chamber stable and reliable performance, suitable GMP certified users

Model: XCH-800SD-3000SD

TEMP Range: 10~65℃

TEMP Fluctuation: ＜±0.5℃

TEMP Deviation: ＜ ±1.0℃

Humidity Range: 20 ～ 95%

Humidity Deviation:＜ ±3%RH

Capacity: 800L~3000L

Environment temperature: +5 ～ 35℃

Item No. :
XCH 2000SD
Origin :
China

FEATURES

STAINLESS STEEL
The liner is made of mirror stainless steel 304
REAL-TIME ALARM
Upper and lower limit deviation alarm of temperature and humidity
1 YEAR WARRANTY
All machines come with a 1-year limited warranty and engineer remote support.
HIGH SENSITIVITY
Capacitive humidity sensor with high sensitivity.

Inquire Now

Download

2000L Medical Stability Temperature Humidity Chamber XCH-2000SD

TEMPERATURE & HUMIDITY Specs:

Temperature Control: Temperature Fluctuation ＜ ±0.5℃ ,Temperature Deviation ＜ ±1.0℃

Humidity Control: Humidity Fluctuation ≤ ±3%RH,Humidity Deviation ≤ ±3%RH

Meet a criterion : Meet ICHQ1A(R2)、Chinese Pharmacopoeia 2020 edition.
Installed Power: AC220V±10% 50HZ
Environment temperature: +5~35℃

SMS alarm: Optional

CONTROL TECHNOLOGY

Refrigeration System: Two sets imported brand fully enclosed compressor,long-life,low noise

Humidity System: Original imported capacitive humidity sensor, direct detection of humidity,maintenance-free.

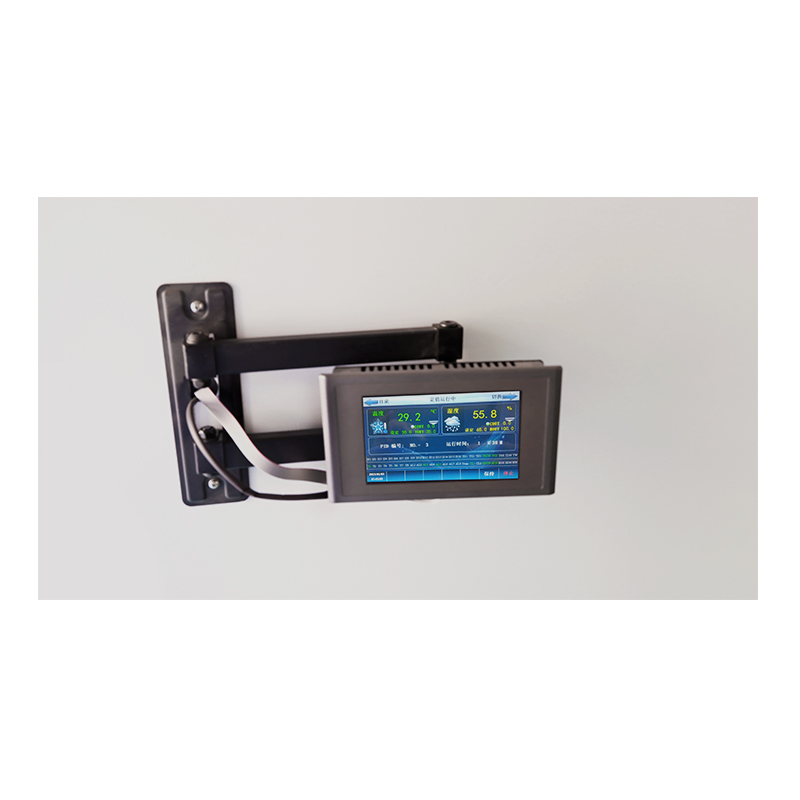

Control System: Color touch screen temperature and humidity controller,High control accuracy,With three levels permission,audit trail.

SAFETY, STANDARDS, & DATA

Safety device: compressor overheat and overpressure overload protection, Fan overheat protection、water shortage protection.

Dual Protection: Equipped with double insurance dry fire protection system, equipped with independent overtemperature protection system, can automatically cut off the power supply;

Data Record: Equipped with data collection system conform to GMP requirements,Needle micro printer and USB output port as standard.

Live Alarm: Temperature and humidity upper limit deviation alarm, independent overtemperature alarm.

MATERIAL:

Structure Design: Adopt the latest airduct system design achieves good uniform of temperature and humidity form different parts inside the chamber.

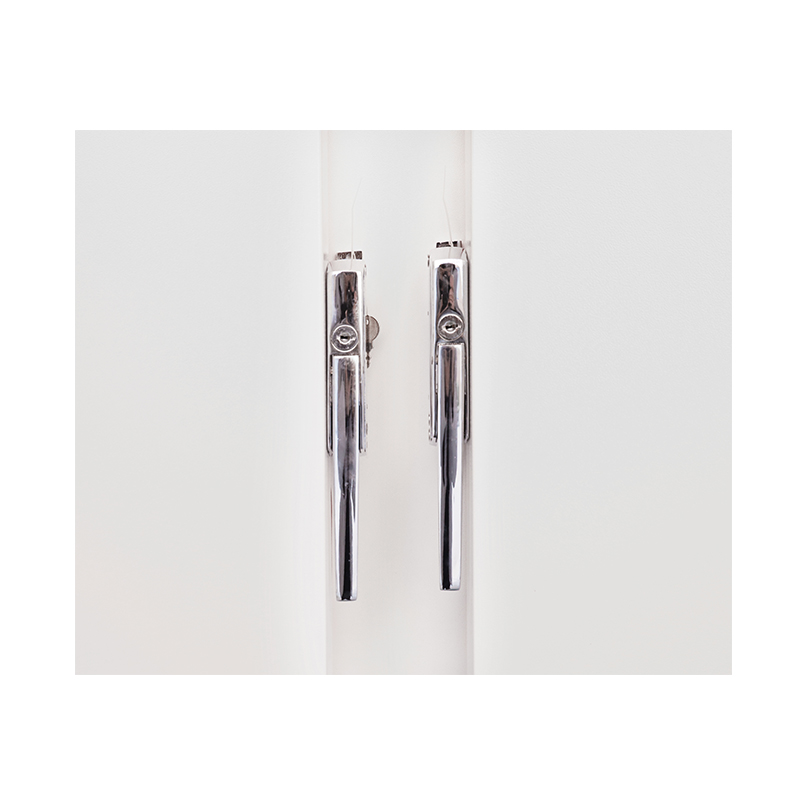

Double door structure: Only open a single door when sampling and lofting to minimize temperature and humidity impact

Insulation material: Integral polyurethane foam technology, with good heat preservation and moisture retention performance.

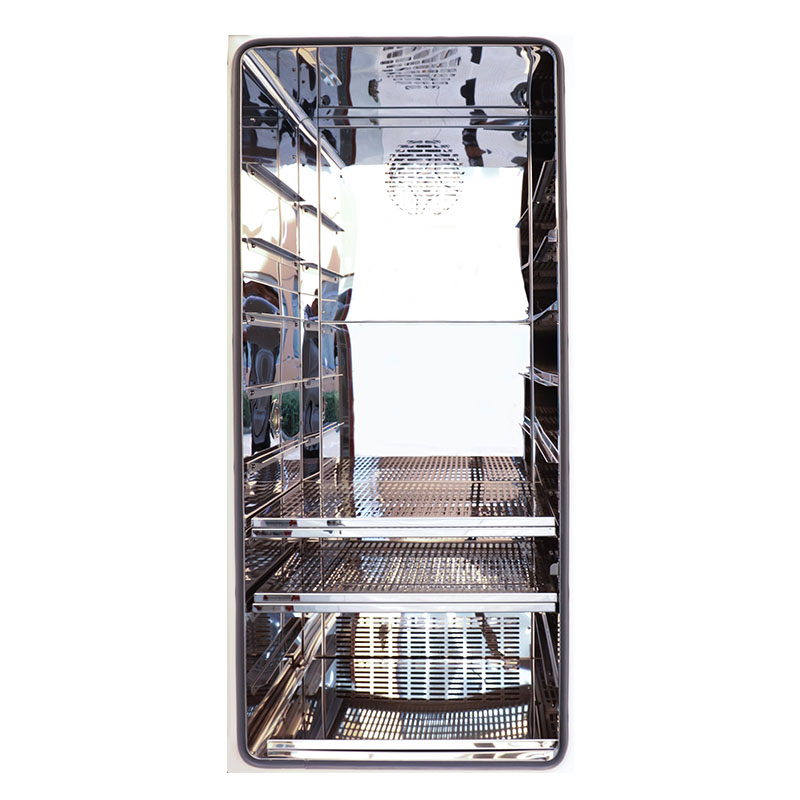

Chamber Material: The liner is made of mirror stainless steel 304, no pollution source, easy to clean.

MODEL & PARAMETERS:

MODEL	TEMP RANGE	Humidity RANGE	CAPACITY(L)	INTERNAL DIMEN(mm) W×D×H	EXTERNAL DIMEN(mm) W×D×H	POWER(KW)	Shelf (Standard)
XCH-800SD-2	10～65℃	20 ～ 95%	800	1200×490×1360	1385x895x1965	2.5	4
XCH-1000SD-2	10～65℃	20 ～ 95%	1000	1400×510×1400	1615x925x1975	3.0	4
XCH-2000SD-2	10～65℃	20 ～ 95%	2000	1500×970×1370	1710x1380x1990	3.5	4
XCH-3000SD-2	10～65℃	20 ～ 95%	3000	1600×1350×1370	1810x1470x2270	4.0	4
